Product Description

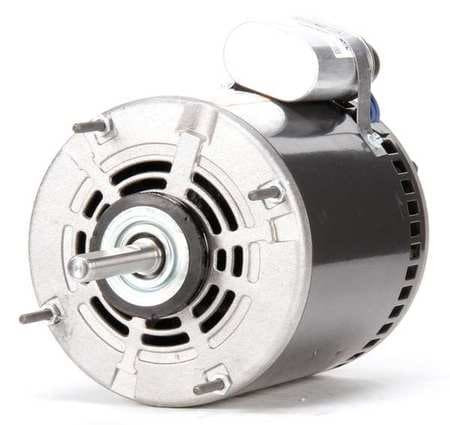

DAYTON 5BE52 - MOTOR PSC 1/4 HP 1725 RPM 115V 48Z OAO - DIRECT DRIVE BLOWER MOTOR PSC MOTOR TYPE OPEN AIR-OVER ENCLOSURE 1/4 HP 1725 NAMEPLATE RPM VOLTAGE 115 4.2 FULL LOAD AMPS 60 HZ 1 PHASE 48Y FRAME SERVICE FACTOR 1.0 MAX AMBIENT TEMP 40 DEGREES C INSULATION CLASS B DUTY CONTINUOUS AIR OVER NUMBER OF SPEEDS 1 MOUNTING STUD SHAFT ORIENTATION ALL ANGLE BEARINGS BALL THERMAL PROTECTION AUTO ROTATION CW/CCW BODY DIA 5-11/16 IN. LENGTH LESS SHAFT 7-1/4 IN. SHAFT DIA 1/2 IN. SHAFT LENGTH 3-1/4 IN. - EQUAL TO G1800705
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
5BE52
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
15.5
CONTRACTOR PART NUMBER:
2510793858
