Product Description

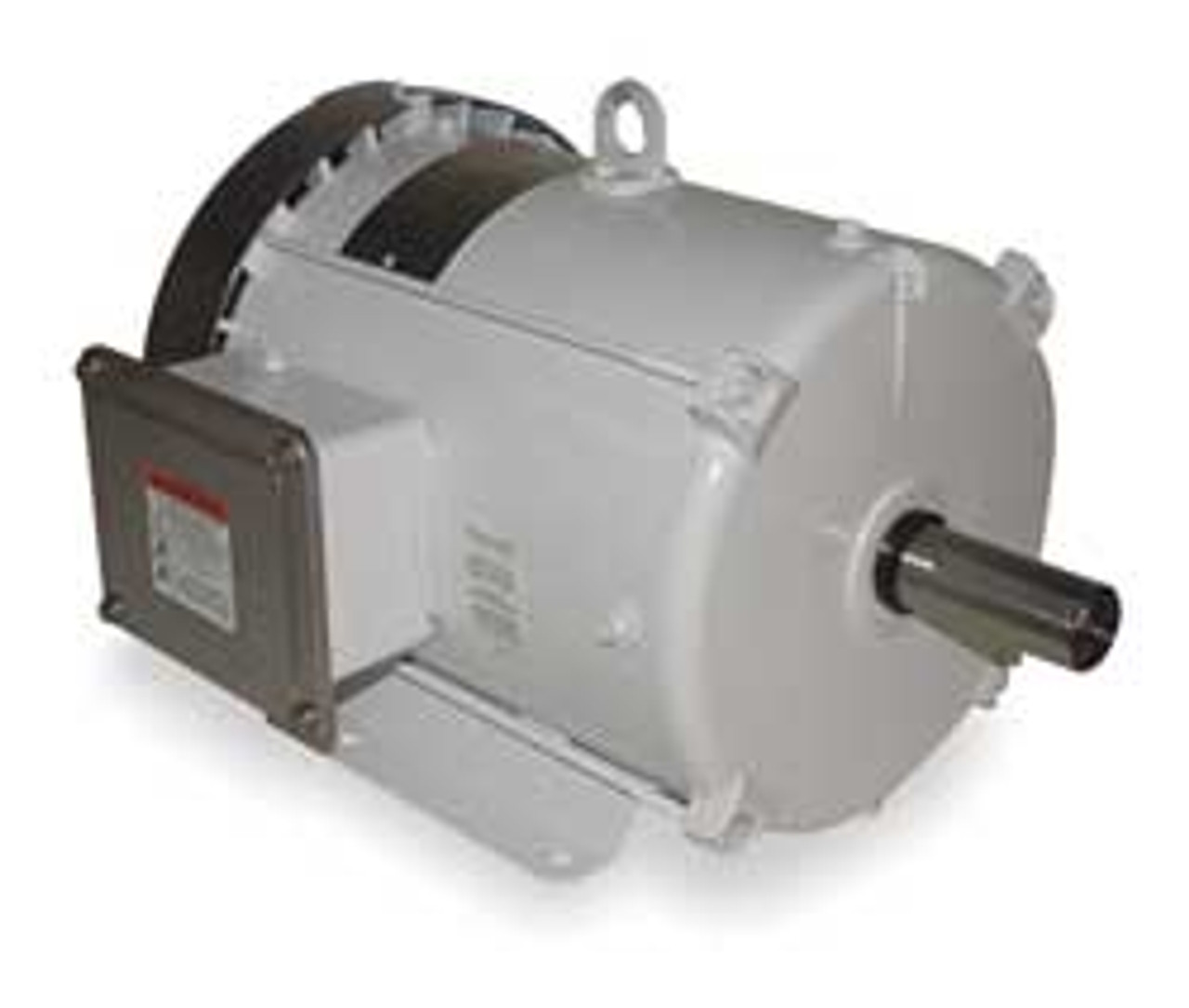

DAYTON 5XAV3 - WASHDOWN MOTOR 3 PH TEFC 10 HP 1765 RPM - WASHDOWN MOTOR 3-PHASE 10 HP 1765 NAMEPLATE RPM VOLTAGE 230/460 PHASE 3 215T FRAME TOTALLY ENCLOSED FAN-COOLED FULL LOAD AMPS 26.8/13.4 60/50 HZ BASE MOUNTING THERMAL PROTECTION NONE F INSULATION CLASS SERVICE FACTOR 1.15 BALL BEARINGS MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 19-3/4 IN. SHAFT DIA 1-3/8 IN. SHAFT LENGTH 3-3/8 IN. BODY DIA 9-5/8 IN. LENGTH LESS SHAFT 16-1/4 IN. CONTINUOUS DUTY FRAME MATERIAL EPOXY COATED - EQUAL TO G1357081
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
5XAV3
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
180
CONTRACTOR PART NUMBER:
2510795740
MAS CONTRACT NUMBER:
47QSEA20D0043
