Product Description

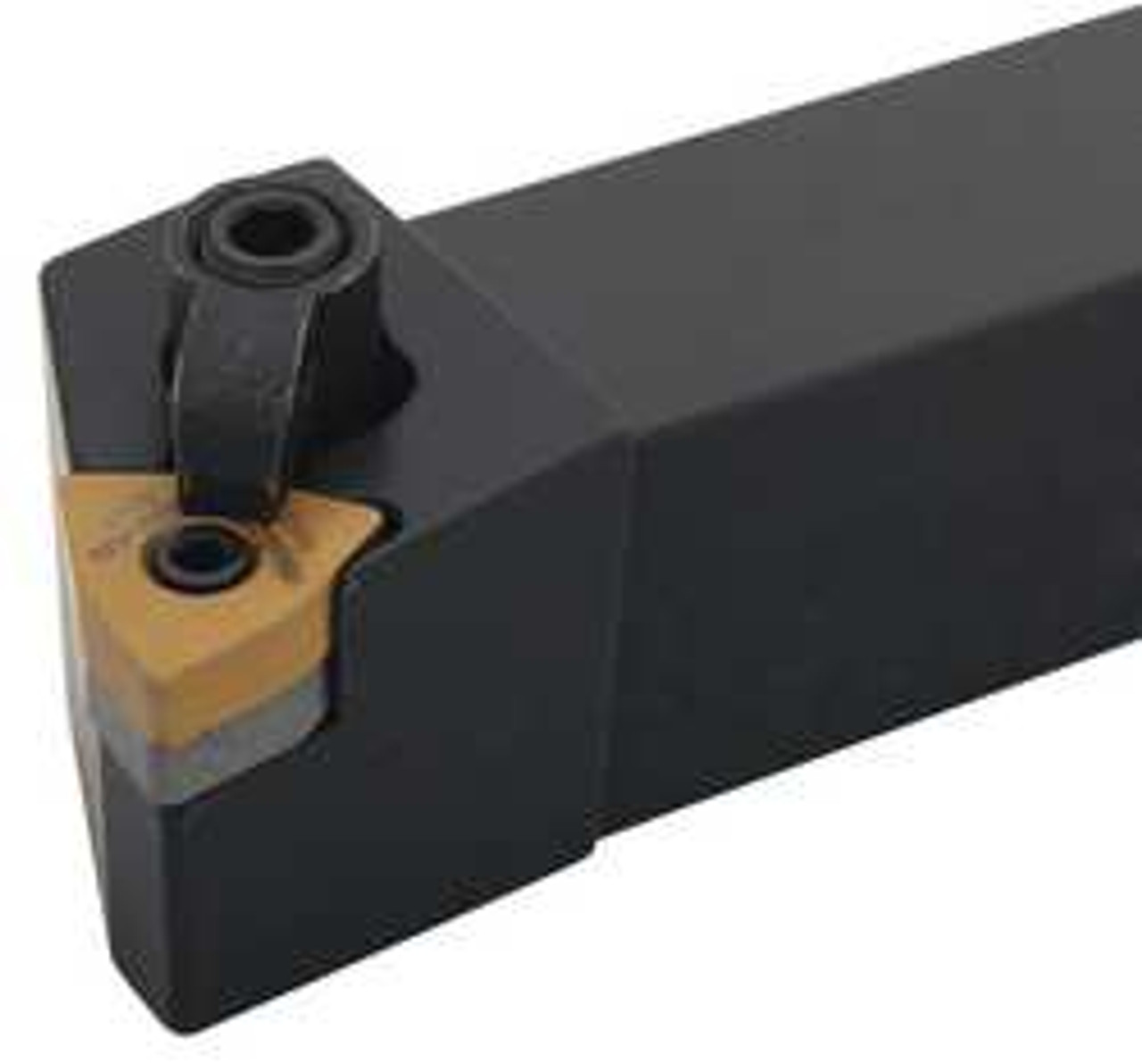

DORIAN 73310151266 - TURNING TOOLHOLDER WNMG MWLNR12-4B RH - TURNING TOOLHOLDER TYPE WNMG STYLE MWLNR12-4B CUTTING DIRECTION RIGHT HAND RAKE NEGATIVE RAKE ANGLE 7 DEGREES SHANK SQUARE SHANK WIDTH 0.750 IN SHANK HEIGHT 0.750 IN OVERALL LENGTH 4.5 IN INSERT SHAPE 80 DEGREES TRIGON LEAD ANGLE NEGATIVE 5 DEGREES INSCRIBED CIRCLE 0.500 IN WIDTH OFFSET 1.000 IN MOUNTING STYLE MULTI-LOCK CLAMP CL-9 CLAMP SCREW XNS-59 INSERT SCREW NL-46 SHIM IWSN-433 ANSI NUMBER MWLNR12-4B - EQUAL TO 41T831
MANUFACTURER:
DORIAN
MANUFACTURER PART NUMBER:
73310151266
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.8
CONTRACTOR PART NUMBER:
2510824140
MAS CONTRACT NUMBER:
47QSEA20D0043
