Product Description

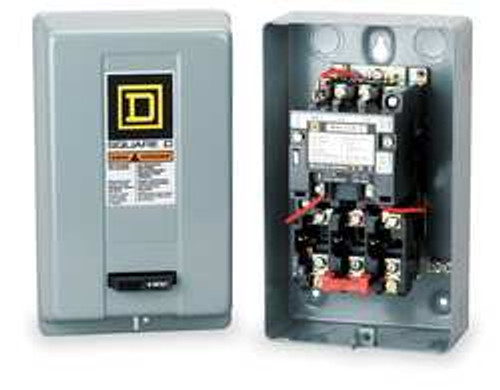

SQUARE D 8536SCG3V02S - H5154 MAGNETIC MOTOR STARTER NEMA 120V 3P 27A - H5154 MAGNETIC MOTOR STARTER NEMA NONREVERSING NEMA SIZE 1 COIL VOLTS 120VAC 50/60 HZ NUMBER OF POLES 3 27 AMPS AC HP @ 3 PHASE - 208V 7-1/2 HP @ 3 PHASE - 230V 7-1/2 HP @ 3 PHASE - 460V 10 HP @ 3 PHASE - 575V 10 HEIGHT 10 IN. WIDTH 6 IN. DEPTH 5.56 IN. ENCLOSURE TYPE NEMA 1 STANDARDS UL LISTED/CSA CERTIFIED - EQUAL TO 1H504
MANUFACTURER:
SQUARE D
MANUFACTURER PART NUMBER:
8536SCG3V02S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
7.35
CONTRACTOR PART NUMBER:
2510844324
MAS CONTRACT NUMBER:
47QSEA20D0043
