Product Description

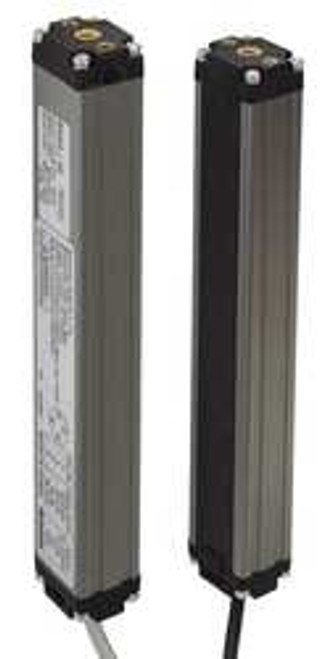

AUTONICS BW40-10 - AREA SENSOR NPN METAL 40MM 10 BEAM - PHOTOELECTRIC AREA SENSOR HOUSING MATERIAL ALUMINUM IP RATING 65 BEAM SPACING 40MM MAX SENSING DISTANCE 0.1 TO 7M NUMBER OF BEAMS 10 PROTECTED HEIGHT 400MM CIRCUIT TYPE NPN OPEN COLLECTOR POWER SOURCE 12 TO 24VDC CABLE CONNECTION 4 PIN M12 CABLE LENGTH 300MM LIGHT SOURCE INFRARED LED RESPONSE TIME 12 MSEC CURRENT CONSUMPTION 80MA MAX LOAD VOLTAGE 30VDC MAX LOAD CURRENT 100MA OUTPUT MODE LIGHT-ON OVERALL HEIGHT 520MM WIDTH 28.6MM DEPTH 22.6MM - EQUAL TO G5493476
MANUFACTURER:
AUTONICS
MANUFACTURER PART NUMBER:
BW40-10
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
KOREA, REPUBLIC OF
ORDER INCREMENT:
1
WEIGHT:
3.09
CONTRACTOR PART NUMBER:
2510885363
MAS CONTRACT NUMBER:
47QSEA20D0043
