Product Description

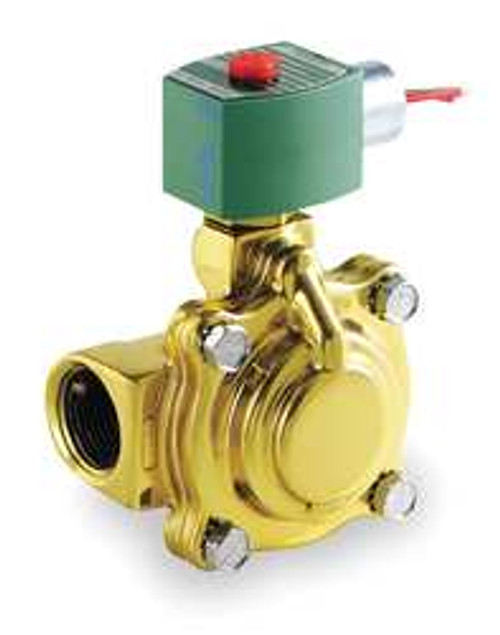

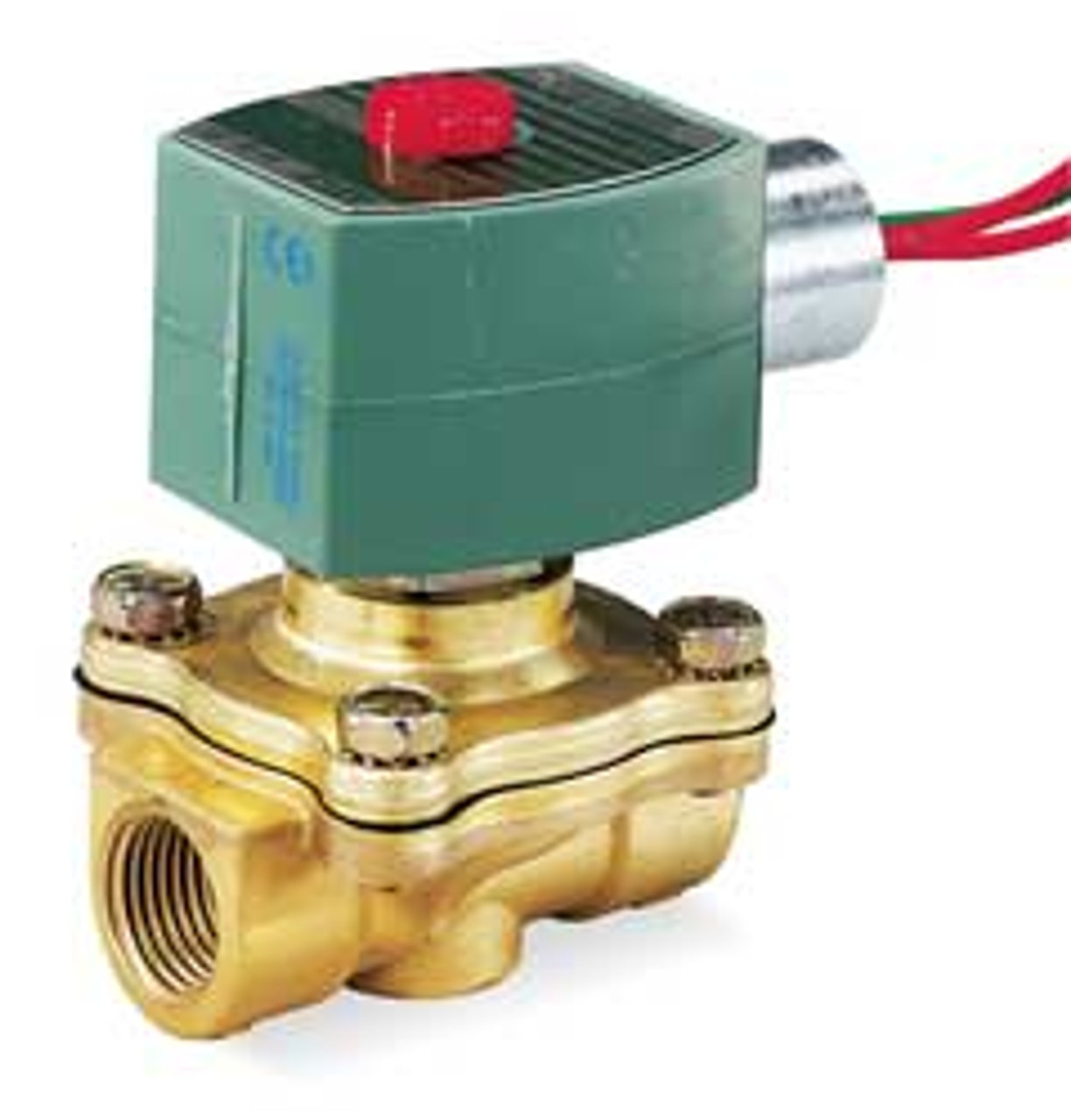

RED HAT EF8210G002-5LU12 - SOLENOID VALVE 2/2 1/2 IN NC 24V BRASS - SOLENOID VALVE BODY MATERIAL BRASS MEDIA AIR/INERT GAS LIGHT OIL AND WATER 2-WAY/2-POSITION NORMALLY CLOSED PIPE SIZE 1/2 IN. ORIFICE DIA 5/8 IN. COEFFICIENT OF VOLUME 4.00 MIN OPERATING PRESSURE DIFFERENTIAL 5 PSI MAX OPERATING PRESSURE DIFFERENTIAL AIR/INERT GAS 125 PSI MAX OPERATING PRESSURE DIFFERENTIAL LIGHT OIL 100 PSI MAX OPERATING PRESSURE DIFFERENTIAL WATER 100 PSI COIL INSULATION CLASS F NEMA RATING 3 4 4X 7 9 MAX FLUID TEMP 150 DEGREES F VOLTAGE 24VDC - EQUAL TO 5LU12
MANUFACTURER:
RED HAT
MANUFACTURER PART NUMBER:
EF8210G002-5LU12
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
2.2
CONTRACTOR PART NUMBER:
2510923600
MAS CONTRACT NUMBER:
47QSEA20D0043
