Product Description

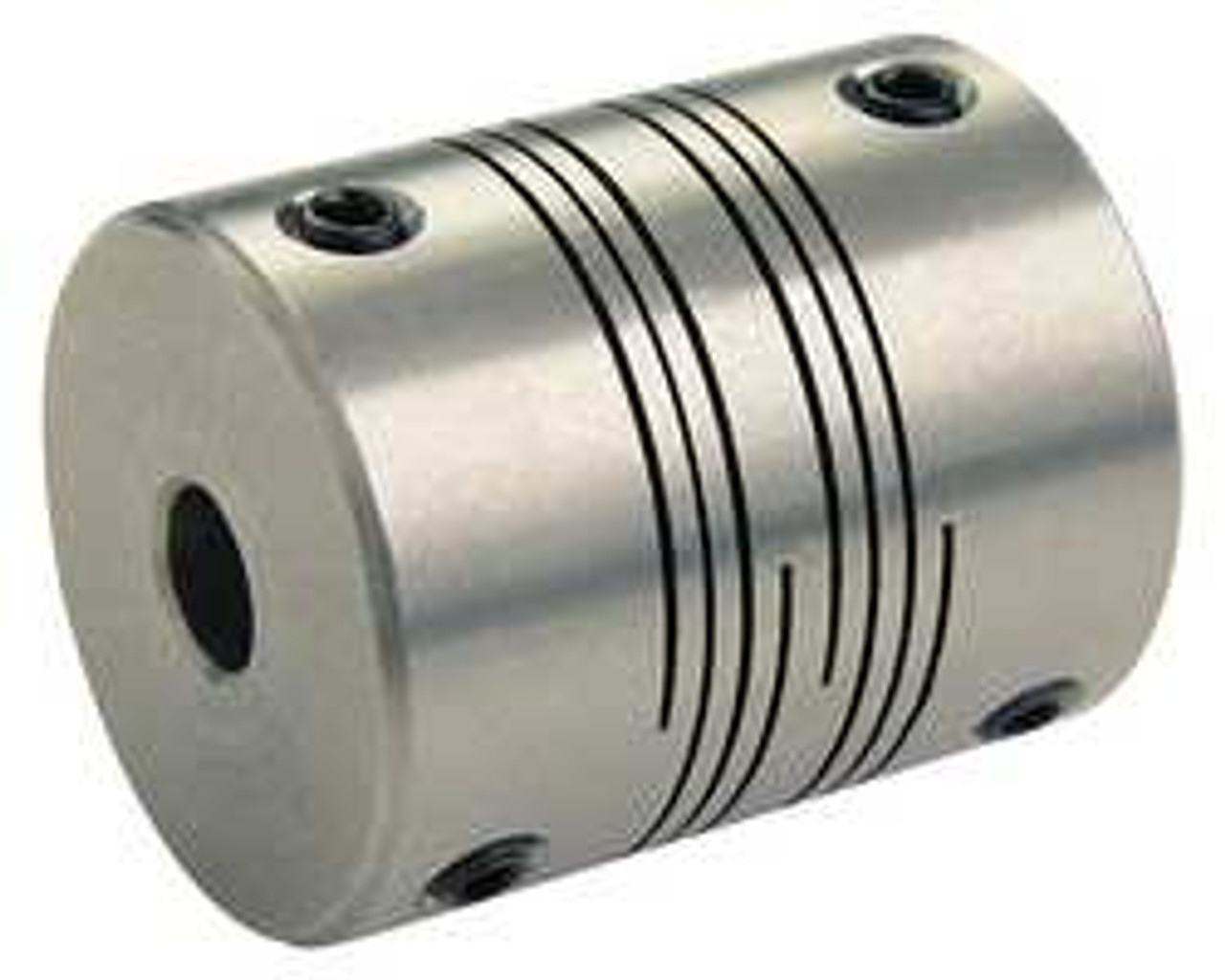

RULAND MANUFACTURING MWS30-12-12-A - COUPLING 4 BEAM SET SCREW 12MMX12MM - MOTION CONTROL COUPLING 4-BEAM SET SCREW STYLE BORE DIA 12MM X 12MM MIN BORE (MM) 12 MAX BORE (MM) 12 OUTSIDE DIA (IN.) 1.181 OUTSIDE DIA (MM) 30 CLEARANCE DIA (IN.) 1.181 CLEARANCE DIA (MM) 30 OVERALL LENGTH (IN.) 1.181 OVERALL LENGTH (MM) 30 LENGTH THROUGH BORE (IN.) 0.537 LENGTH THROUGH BORE (MM) 13.65 SET SCREW SCREW SIZE (MM) M5 2 (120 DEG.) TORQUE (IN.-LBS.) 58 TORSIONAL STIFFNESS (DEG./IN.-LBS.) 0.105 6000 MAX RPM 3 DEGREES 0.01 +/-0.015 - EQUAL TO G8275951
MANUFACTURER:
RULAND MANUFACTURING
MANUFACTURER PART NUMBER:
MWS30-12-12-A
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.37
CONTRACTOR PART NUMBER:
2510986026
MAS CONTRACT NUMBER:
47QSEA20D0043
