Product Description

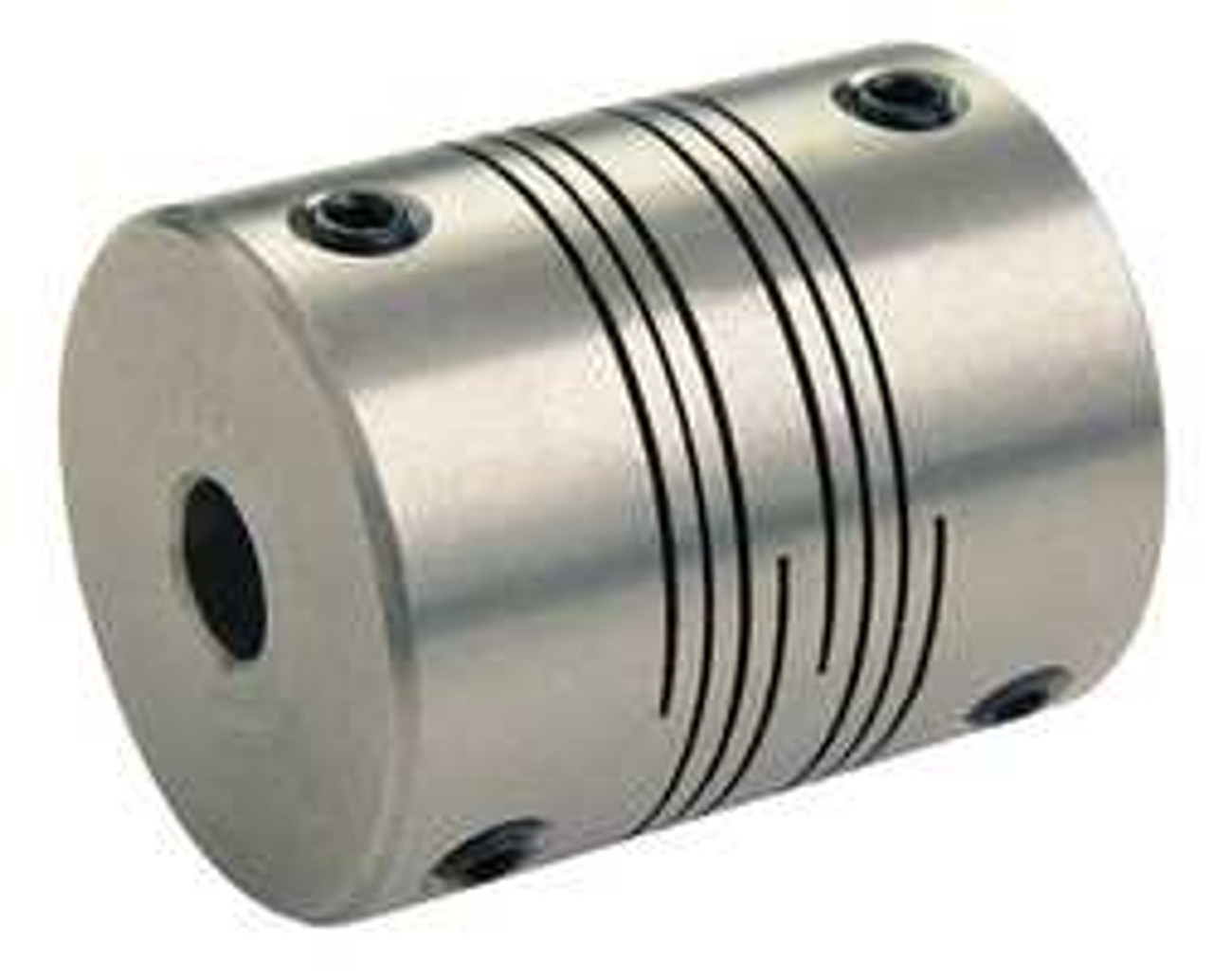

RULAND MANUFACTURING PSMR32-12-12-SS - COUPLING 4 BEAM SET SCREW 12MMX12MM - MOTION CONTROL COUPLING 4-BEAM SET SCREW STYLE BORE DIA 12MM X 12MM MIN BORE (MM) 12 MAX BORE (MM) 12 OUTSIDE DIA (IN.) 1.25 OUTSIDE DIA (MM) 31.8 MM CLEARANCE DIA (IN.) 1.125 CLEARANCE DIA (MM) 28.6 OVERALL LENGTH (IN.) 1.5 OVERALL LENGTH (MM) 38.1 LENGTH THROUGH BORE (IN.) 0.67 LENGTH THROUGH BORE (MM) 17.02 SET SCREW SCREW SIZE (MM) M6 2 (120 DEG.) TORQUE (IN.-LBS.) 70 TORSIONAL STIFFNESS (DEG./IN.-LBS.) 0.064 6000 MAX RPM 3 DEGREES 0.015 +/-0.01 - EQUAL TO G8392343
MANUFACTURER:
RULAND MANUFACTURING
MANUFACTURER PART NUMBER:
PSMR32-12-12-SS
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
0.55
CONTRACTOR PART NUMBER:
2511036855
MAS CONTRACT NUMBER:
47QSEA20D0043
