Product Description

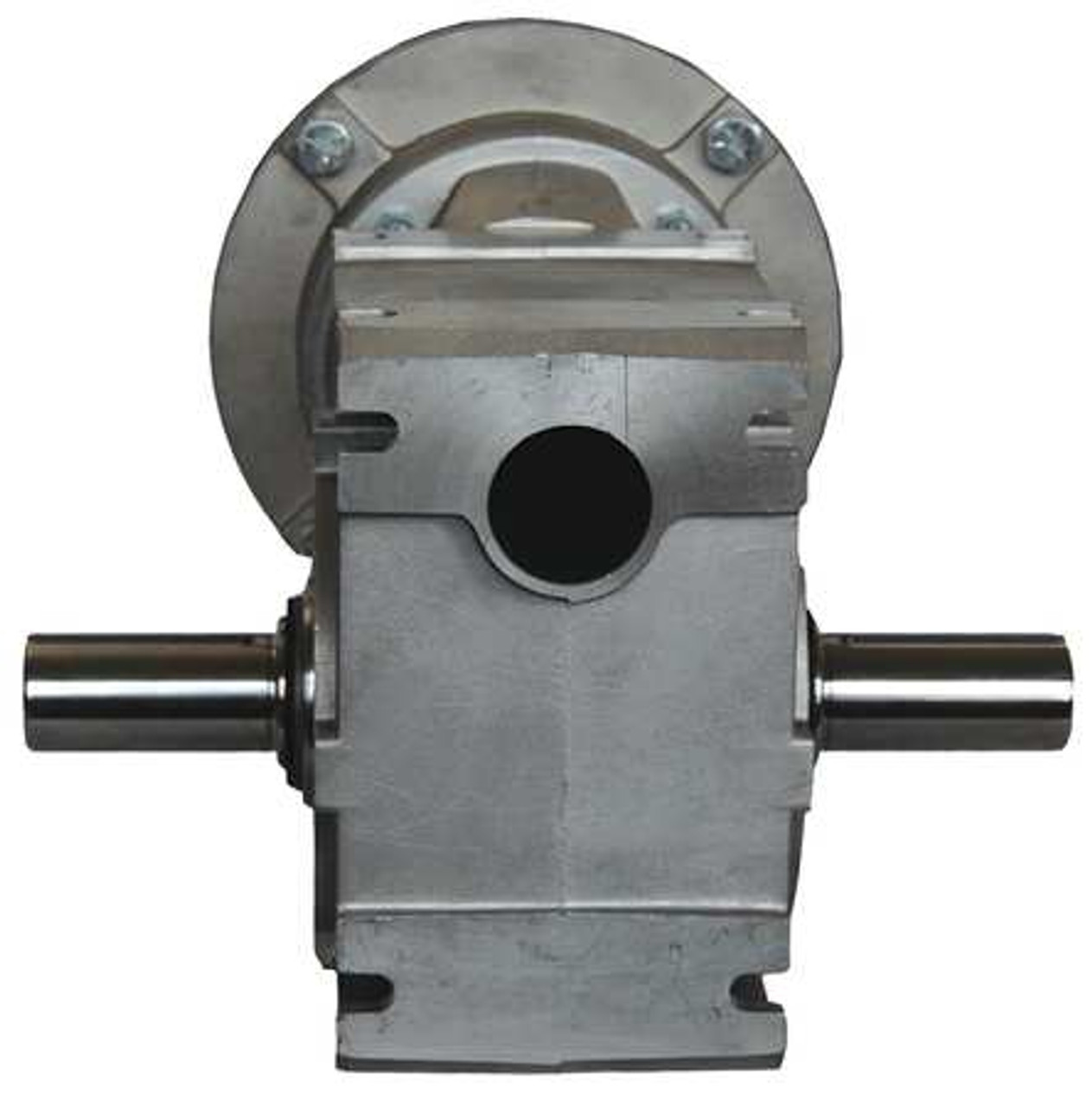

NORD SK1SI50Y-140TC-10:1 - SPEED REDUCER,RIGHT ANGLE,140TC,10:1 - SPEED REDUCER, RIGHT ANGLE, RIGHT ANGLE SHAFT ORIENTATION, 1,750 INPUT RPM, 175 NOMINAL OUTPUT RPM, WORM CENTER DISTANCE 1.97 IN, BORE DIA. 1 1/8 IN, 140TC FRAME, OVERHUNG LOAD 1,080 LB, 10:1 NOMINAL RATIO, MAX. INPUT HP 2.13 HP, MAX. OUTPUT TORQUE 664 IN-LB, NUMBER OF STAGES 1, REVERSIBLE ROTATION, UNIVERSAL FOOT AND FLANGE-MOUNT MOUNTING, BALL BEARINGS, HARDENED STEEL PINION MATERIAL, WORM GEAR TYPE, ALUMINUM HOUSING MATERIAL, UNIVERSAL, OUTPUT SHAFT DIA. 1 IN, OUTPUT SHAFT HEIGHT 2 23/64 IN - EQUAL TO G8241204
MANUFACTURER:
NORD
MANUFACTURER PART NUMBER:
SK1SI50Y-140TC-10:1
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
GERMANY
ORDER INCREMENT:
1
WEIGHT:
9
CONTRACTOR PART NUMBER:
2511046274
MAS CONTRACT NUMBER:
47QSEA20D0043
