Product Description

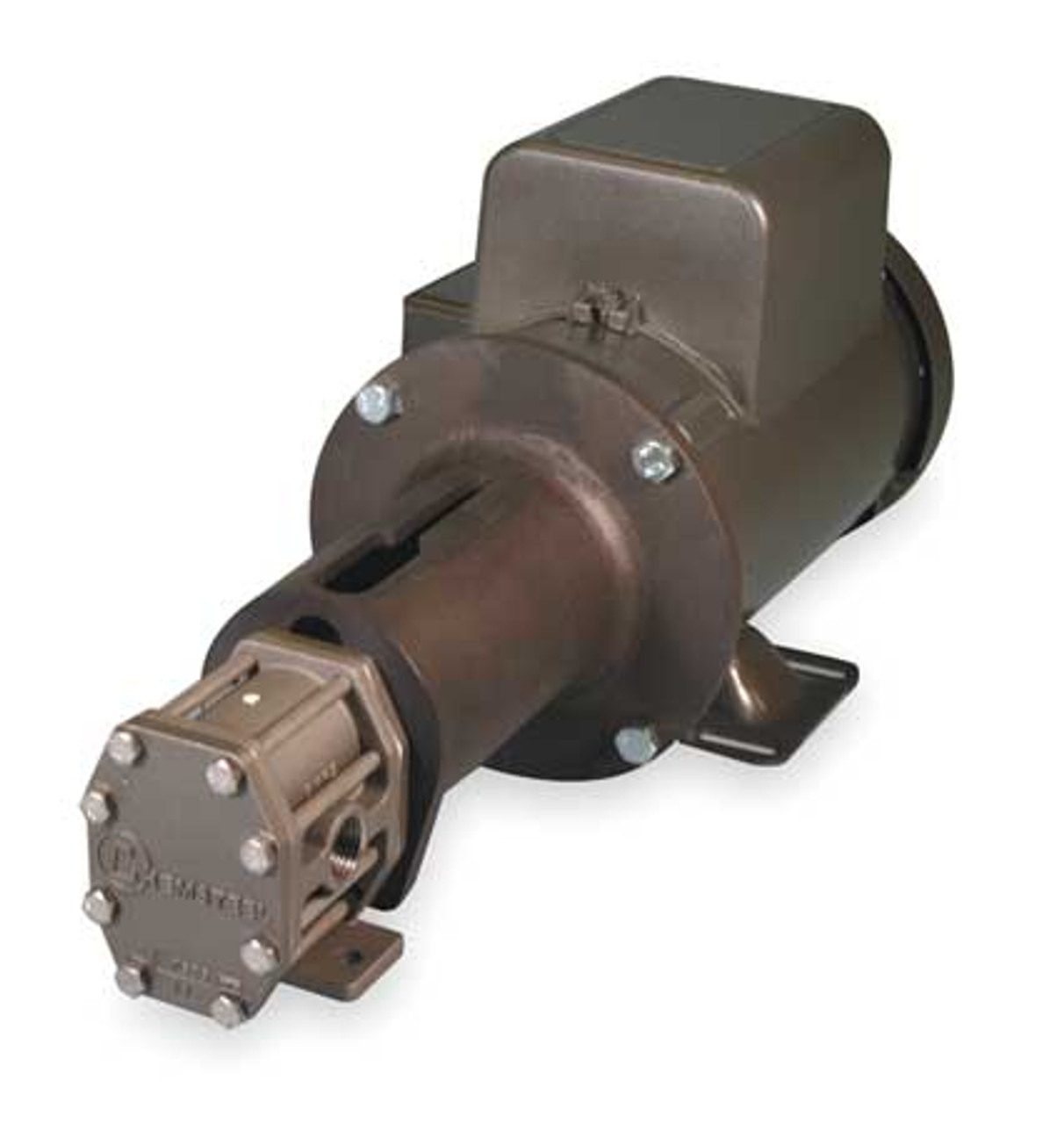

OBERDORFER S21016CAC1-N47 - ROTARY GEAR PUMP 1 HP 1 PHASE - ROTARY GEAR PUMP CLOSE COUPLED 1 HP HP 1 PHASE VOLTAGE 115/230 12.8/6.4 AMPS MOTOR FRAME 56C MOTOR ENCLOSURE TEFC PORT SIZE (IN.) 1/2 IN SUCTION LIFT (FT.) 6 FT GPM MAX 6.3 GPM MAX PRESSURE (PSI) 110 PSI RELIEF VALVE - SEAL PTFE TYPE 9T MECHANICAL WITH STAINLESS STEEL BODY MATERIAL 316 STAINLESS STEEL SHAFT MATERIAL 316 STAINLESS STEEL TEMP RANGE - MIN TEMP (F) -50 DEGREES F MAX TEMP (F) 450 DEGREES F GEAR MATERIAL 316 SS/ALLOY 20 HELICAL MAX RPM 1 725 RPM - EQUAL TO 2ERC5
MANUFACTURER:
OBERDORFER
MANUFACTURER PART NUMBER:
S21016CAC1-N47
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
49.3
CONTRACTOR PART NUMBER:
2511096733
MAS CONTRACT NUMBER:
47QSEA20D0043
