Product Description

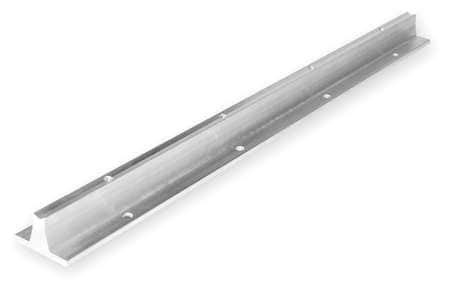

PBC LINEAR SR24PD-024.000 - SUPPORT RAIL ALUMINUM 1.500 IN D 24 IN - SHAFT SUPPORT RAIL DRILLED SHAFT DIA 1.500 IN DIA TOLERANCE MIN 1.499 DIA TOLERANCE MAX 1.500 MOUNTING SURFACE TO SHAFT CENTER 2.500 IN MOUNTING HOLE FROM SHAFT END 4 IN MOUNTING HOLE CENTER TO CENTER 8 IN MOUNTING HOLES CLEAN MOUNTING HOLE SIZE 0.343 IN THREAD SIZE 0.375 IN-16 X 2.000 IN 0.312 BOLT SIZE LENGTH 24 IN BASE WIDTH 3.000 IN BASE HEIGHT 0.375 IN OVERALL HEIGHT 3.250 IN ALUMINUM MATERIAL FOR USE WITH SIMPLICITY FRELONGOLD(TM) LINED BEARINGS - EQUAL TO G1156233
MANUFACTURER:
PBC LINEAR
MANUFACTURER PART NUMBER:
SR24PD-024.000
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
5.69
CONTRACTOR PART NUMBER:
2511099726
MAS CONTRACT NUMBER:
47QSEA20D0043
