Product Description

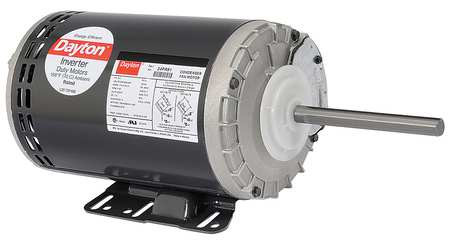

DAYTON 20RK87 - CONDENSER FAN MOTOR 1.5 HP 208-230/460V - CONDENSER FAN MOTOR MOTOR TYPE 3-PHASE ENCLOSURE OPEN AIR-OVER 1-1/2 HP RPM RANGE 1101-1200 NAMEPLATE RPM 1140 VOLTAGE 208-230/460 56YZ FRAME NUMBER OF SPEEDS 1 OVERALL LENGTH 16-3/4 IN. SHAFT LENGTH 5-5/8 IN. SHAFT ORIENTATION UP FEATURES INVERTER DUTY WINDINGS ROTATION CW/CCW FULL LOAD AMPS 5.3-5.3/2.6 BASE MOUNTING THERMAL PROTECTION THERMOSTATS INSULATION CLASS F SERVICE FACTOR 1.00 BEARINGS BALL MAX AMBIENT TEMP 70 DEGREES C SHAFT DIA 5/8 IN. - EQUAL TO 20RK87
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
20RK87
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
32
CONTRACTOR PART NUMBER:
2511184656
MAS CONTRACT NUMBER:
47QSEA20D0043
