Product Description

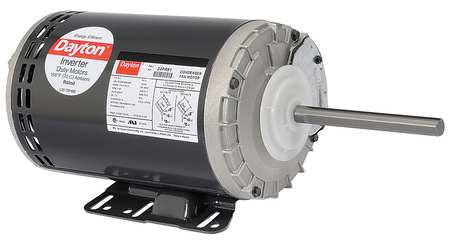

DAYTON 20RK79 - CONDENSER FAN MOTOR 1 HP 208-230/460V - CONDENSER FAN MOTOR MOTOR TYPE 3-PHASE ENCLOSURE OPEN AIR-OVER 1 HP RPM RANGE UNDER 1000 NAMEPLATE RPM 850 VOLTAGE 208-230/460 56YZ FRAME NUMBER OF SPEEDS 1 OVERALL LENGTH 15-3/4 IN. SHAFT LENGTH 5-5/8 IN. SHAFT ORIENTATION UP FEATURES INVERTER DUTY WINDINGS ROTATION CW/CCW FULL LOAD AMPS 5.0-5.0/2.5 BAND MOUNTING THERMAL PROTECTION THERMOSTATS INSULATION CLASS F SERVICE FACTOR 1.00 BEARINGS BALL MAX AMBIENT TEMP 70 DEGREES C SHAFT DIA 5/8 IN. - EQUAL TO 20RK79
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
20RK79
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
32
CONTRACTOR PART NUMBER:
2511188739
MAS CONTRACT NUMBER:
47QSEA20D0043
