Product Description

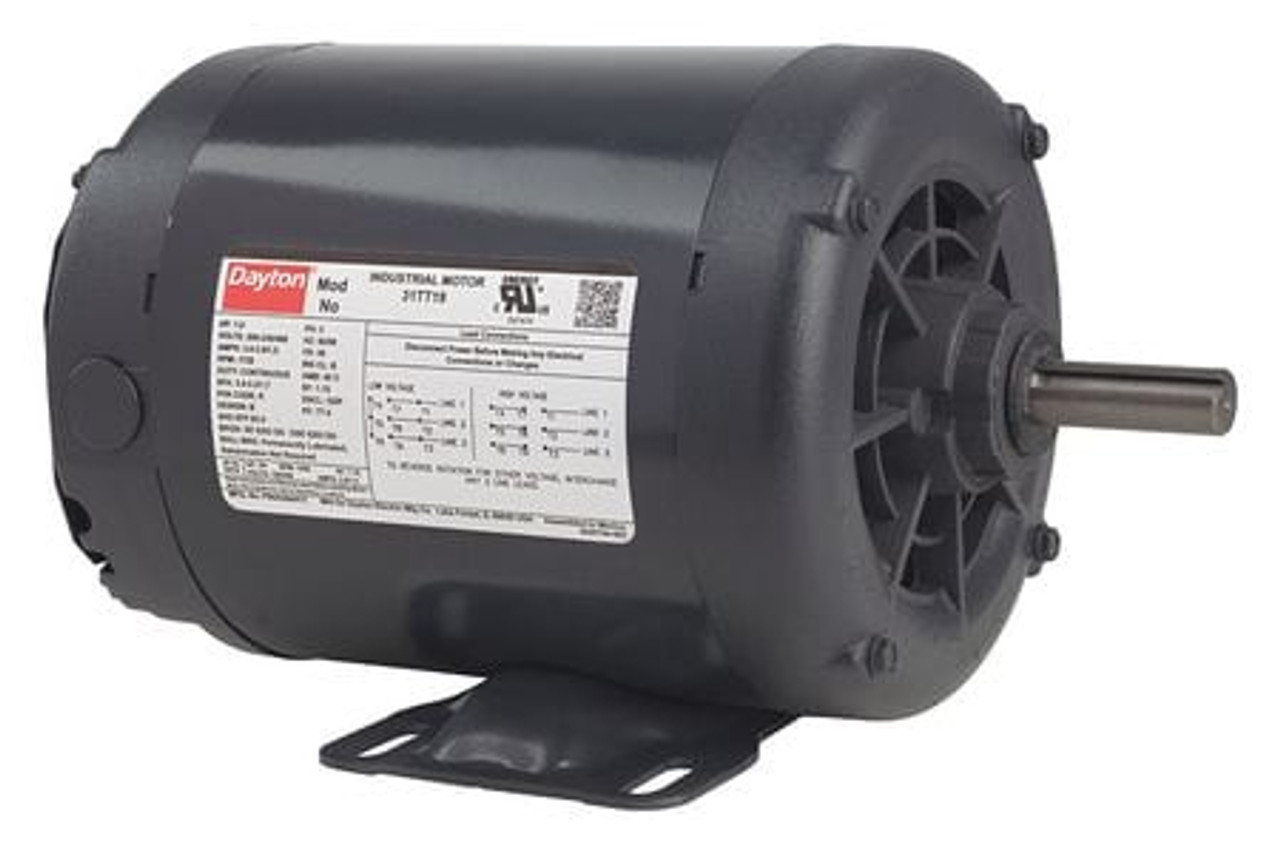

DAYTON 20VD22 - 3 PH 1/3 1725 208-230/460 56 EFF 73.4 - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 1/3 HP NAMEPLATE RPM 1725 56 FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 1.2-1.2/0.6 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOUNTING BASE MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT DOWN MOTOR THERMAL PROTECTION NONE INSULATION CLASS B 1.35 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 11-1/4 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO 20VD22
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
20VD22
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
15.4
CONTRACTOR PART NUMBER:
2511188860
MAS CONTRACT NUMBER:
47QSEA20D0043
