Product Description

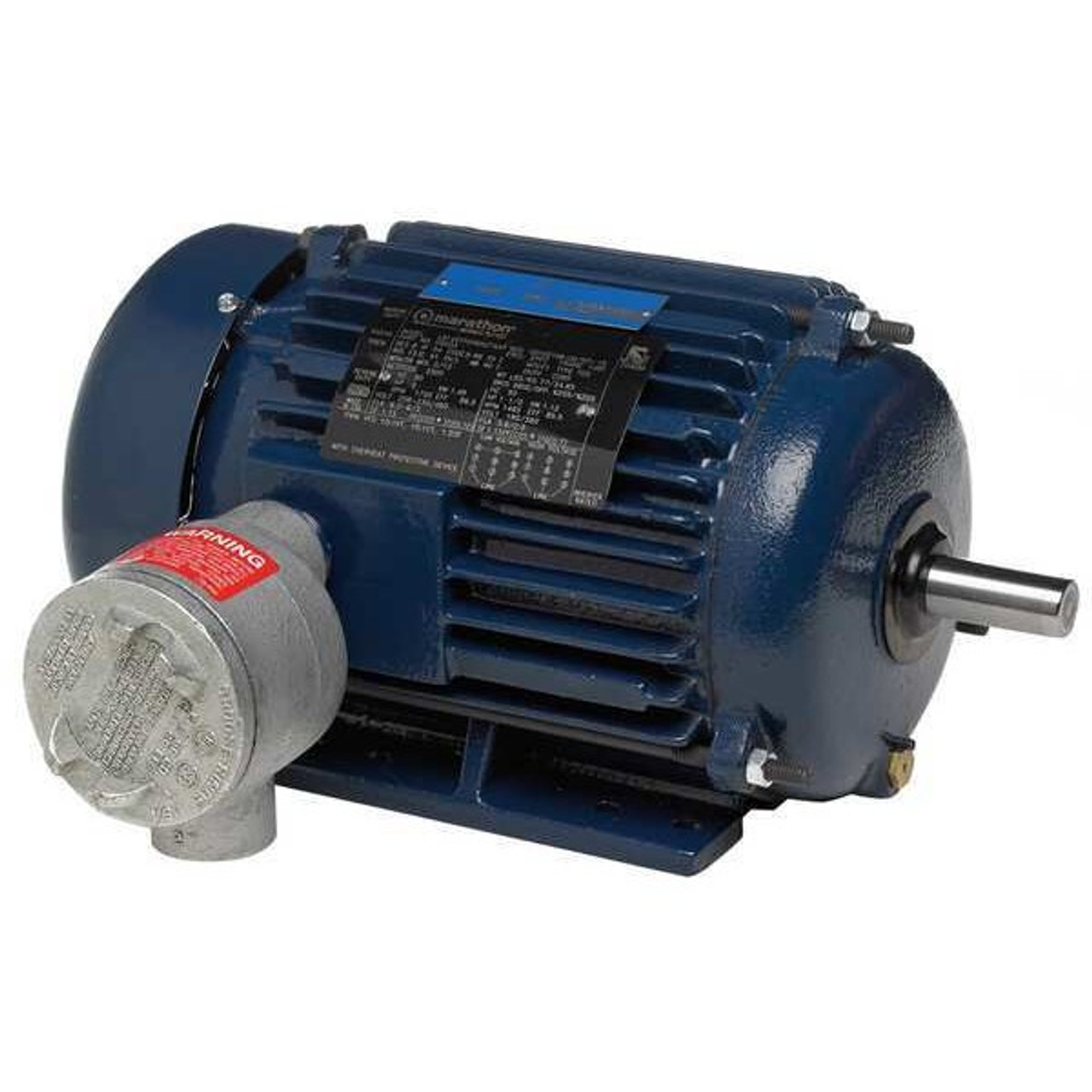

MARATHON 182TTGN6530 - HAZLOC MOTOR 3 HP 1765 RPM 575V - HAZARDOUS LOCATION MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 3 HP 1765 NAMEPLATE RPM 182T FRAME NEMA DESIGN B CW/CCW MOTOR SHAFT ROTATION VOLTAGE 575 FULL LOAD AMPS 3.2 PHASE 3 60 HZ RIGID BASE MOTOR MOUNTING TYPE BALL BEARINGS FRAME MATERIAL CAST IRON THERMAL PROTECTION T-STAT SERVICE FACTOR 1.15 HAZARDOUS LOCATION CLASS 1 D / 2 F G MAX AMBIENT TEMP 40 DEGREES C TEMP CODE T3B MOTOR SHAFT DESIGN KEYED SHAFT DIA 1-1/8 IN. SHAFT LENGTH 2-3/4 IN. OVERALL LENGTH 15-7/8 IN. - EQUAL TO 39W947
MANUFACTURER:
MARATHON
MANUFACTURER PART NUMBER:
182TTGN6530
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
139
CONTRACTOR PART NUMBER:
2511210197
MAS CONTRACT NUMBER:
47QSEA20D0043
