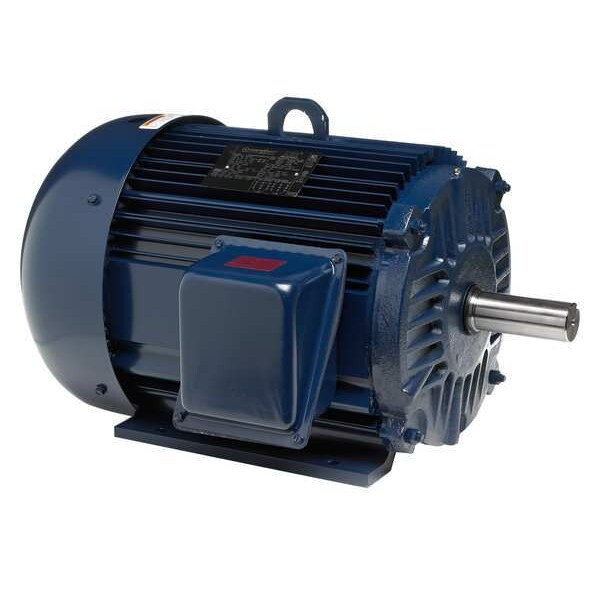

MARATHON 184TTFW16001 MOTOR 3-PH 5 HP 3495 RPM 208-230/460V

MARATHON 184TTFW16001 - MOTOR 3-PH 5 HP 3495 RPM 208-230/460V - GENERAL PURPOSE MOTOR 3-PHASE TOTALLY ENCLOSED FAN-COOLED 5 HP NAMEPLATE RPM 3495 184T FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 13.0-12.0/6.0 FULL LOAD AMPS NUMBER OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION HORIZONTAL MOTOR THERMAL PROTECTION NONE INSULATION CLASS F 1.25 SERVICE FACTOR BALL BEARINGS FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 14-15/16 IN. MOTOR SHAFT DESIGN KEYED - EQUAL TO 44Z455
