Product Description

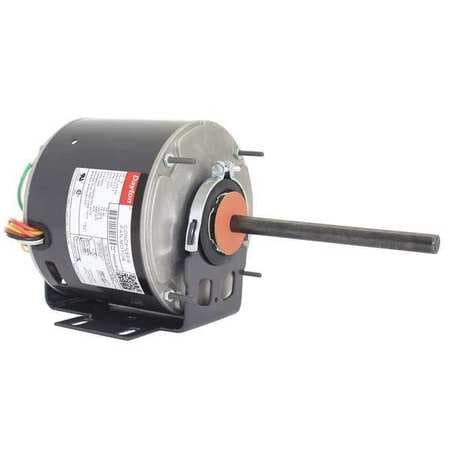

DAYTON 3M990 - CONDENSER FAN MOTOR,1/4 HP,1075 RPM,60HZ - CONDENSER FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/4 HP, NAMEPLATE RPM 1,075, NO. OF SPEEDS 1, VOLTAGE 208-230V AC, 2.5-2.3 FULL LOAD AMPS, 48YZ FRAME, 60 HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS B, DUTY CYCLE CONTINUOUS, MAX. AMBIENT TEMP. 60 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN AIR-OVER, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT UP, SHAFT LENGTH 6 IN - EQUAL TO 3M990
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
3M990
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
14.3
CONTRACTOR PART NUMBER:
2511225212
