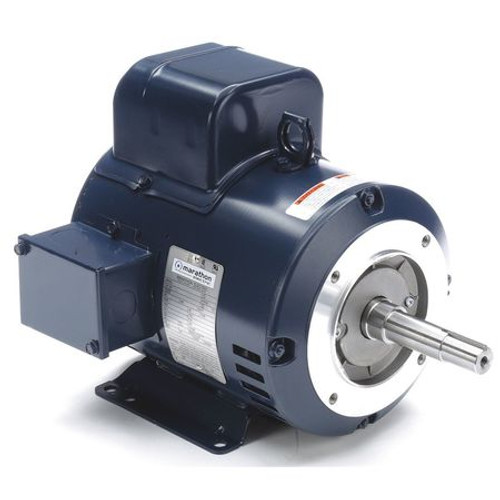

MARATHON 184TCDW7047 CLOSE-COUPLED PUMP MOTOR3 HP 1747 RPM

MARATHON 184TCDW7047 - CLOSE-COUPLED PUMP MOTOR3 HP 1747 RPM - CLOSE-COUPLED PUMP MOTOR CAPACITOR-START 3 HP NAMEPLATE RPM 1747 VOLTAGE 115/230 1 PHASE FRAME 184JM OPEN DRIPPROOF FULL LOAD AMPS 33.5/16.8 60 HZ FACE/BASE MOTOR MOUNTING TYPE MOTOR THERMAL PROTECTION NONE INSULATION CLASS F SERVICE FACTOR 1.15 BALL BEARINGS MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 15-13/16 IN. SHAFT DIA 7/8 IN. SHAFT LENGTH 4-1/4 IN. FRAME MATERIAL ROLLED STEEL - EQUAL TO G5747901
