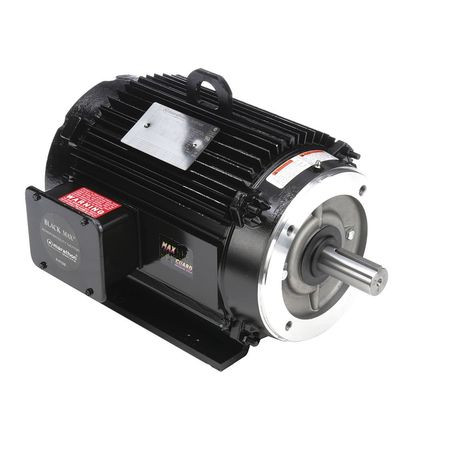

MARATHON 213THTL7736 VECTOR MOTOR 7-1/2 HP 22.3 LB-FT 575V

MARATHON 213THTL7736 - VECTOR MOTOR 7-1/2 HP 22.3 LB-FT 575V - VECTOR MOTOR 3-PHASE TOTALLY ENCLOSED NONVENTILATED 7-1/2 HP TORQUE 22.3 LB.-FT. NAMEPLATE RPM 1765 SPEED RANGE 1000 1 CT MAX SPEED 4200 RPM FRAME 213TC MAX OPERATING FREQUENCY 120 HZ VOLTAGE 575 60 HZ 3 PHASE 8.4 FULL LOAD AMPS FACE/BASE MOTOR MOUNTING TYPE HORIZONTAL MOTOR MOUNTING POSITION CW/CCW MOTOR SHAFT ROTATION BALL BEARINGS 1.00 SERVICE FACTOR THERMAL PROTECTION T-STAT INSULATION CLASS F AMBIENT TEMPERATURE 40 DEGREES C NOMINAL EFFICIENCY 0.902 - EQUAL TO 46M716
