Product Description

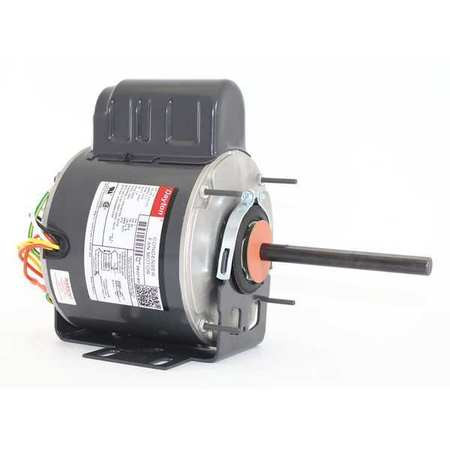

DAYTON 3M994 - CONDENSER FAN MOTOR 1/2 HP 1075 RPM 60HZ - CONDENSER FAN MOTOR MOTOR DESIGN PERMANENT SPLIT CAPACITOR MOTOR ENCLOSURE DESIGN OPEN AIR-OVER 1/2 HP RPM RANGE 1001-1100 NAMEPLATE RPM 1075 VOLTAGE 208-230 48YZ FRAME NO OF SPEEDS 1 OVERALL LENGTH 12-15/16 IN. SHAFT LENGTH 6 IN. MOTOR MOUNTING POSITION HORIZONTAL OR VERTICAL SHAFT UP FEATURES REVERSING PLUG TOTALLY ENCLOSED SHAFT ENDSHIELD AND SHELL MOTOR SHAFT ROTATION CW/CCW FULL LOAD AMPS 3.9-3.9 CRADLE BASE MOTOR MOUNTING TYPE MOTOR THERMAL PROTECTION AUTO INS. CLASS B - EQUAL TO G2698157
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
3M994
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
19.2
CONTRACTOR PART NUMBER:
2511302769
