Product Description

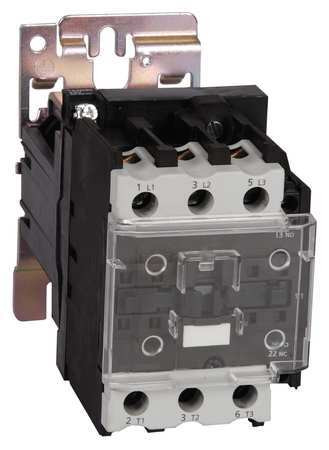

DAYTON 6ECD7 - H2456 IEC MAGNETIC CONTACTOR 24V 65A 1NC/1NO - H2456 IEC MAGNETIC CONTACTORS FULL LOAD AMPS-INDUCTIVE 65 FULL LOAD AMPS-RESISTIVE 80 NUMBER OF POLES 3 COIL VOLTS 24VDC 50/60 HZ ACTION NON-REVERSING OPEN ENCLOSURE TYPE AUXILIARY CONTACT FORM 1NC/1NO HP @ 1 PHASE - 120V 5 HP @ 1 PHASE - 230V 10 HP @ 3 PHASE - 208V 20 HP @ 3 PHASE - 240V 20 HP @ 3 PHASE - 480V 50 HP @ 3 PHASE - 575V 50 HEIGHT 2.95 IN. WIDTH 2.95 IN. DEPTH 6.73 IN. STANDARDS UL CSA IEC - EQUAL TO G2819004
MANUFACTURER:
DAYTON
MANUFACTURER PART NUMBER:
6ECD7
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
INDIA
ORDER INCREMENT:
1
WEIGHT:
2.7
CONTRACTOR PART NUMBER:
2511320934
