Product Description

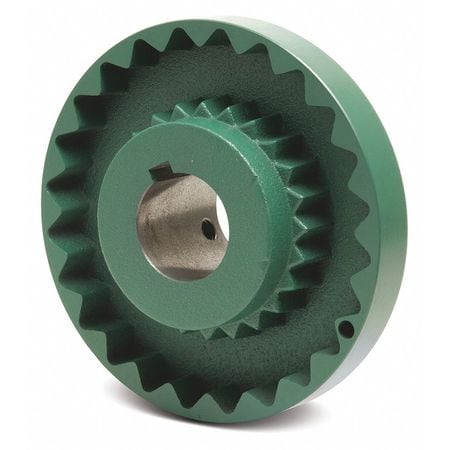

TB WOOD'S 7S178 - SHAFT COUPLING CAST IRON 1/2 KEYWAY W - S-FLEX SHAFT COUPLING BODY STYLE TYPE-S FLANGE CLOSE COUPLED BORE DIA (IN.) 1-7/8 1.84 MAX RPM 5250 KEYWAY LENGTH (IN.) 1.84 KEYWAY WIDTH (IN.) 1/2 4.625 1.84 4.625 4.625 CAST IRON ONE OVER THE KEY AND ONE AT 90 DEGREES 1 DEGREE WITH EPDM/NEOPRENE SLEEVES AND 1/4 DEGREE WITH HYTREL SLEEVES APPLICATIONS IN MOTORS PUMPS COMPRESSORS BLOWERS MIXERS AND CONVEYORS BUSHING REQUIRED NONE - EQUAL TO G8513206
MANUFACTURER:
TB WOOD'S
MANUFACTURER PART NUMBER:
7S178
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
2.4
CONTRACTOR PART NUMBER:
2511367156
