Product Description

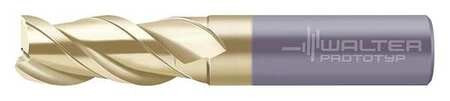

WALTER PROTOTYP H4036217-20 - SC END MILL 4.09MM L.3 FLUTES - SOLID CARBIDE END MILL GRADE HIGH PERFORMANCE ADVANCED CUTTER END STYLE SQUARE END SINGLE DIMENSION TYPE METRIC DIAMETER 0.79MM SHANK DIA 0.79MM LENGTH OF CUT 1.65MM OVERALL LENGTH 4.09MM NUMBER OF FLUTES 3 CENTER CUTTING TYPE CUTTING DIRECTION RIGHT HAND HELIX ANGLE 45 DEGREES CORNER RADIUS 0.20MM FINISH TAZ COATED NECK DIA 0.75MM NECK LENGTH 4.09MM APPLICATION ADVANCED MILLING CUTTERS - EQUAL TO G8801572
MANUFACTURER:
WALTER PROTOTYP
MANUFACTURER PART NUMBER:
H4036217-20
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
GERMANY
ORDER INCREMENT:
1
WEIGHT:
0.88
CONTRACTOR PART NUMBER:
2511486126
MAS CONTRACT NUMBER:
47QSEA20D0043
