Product Description

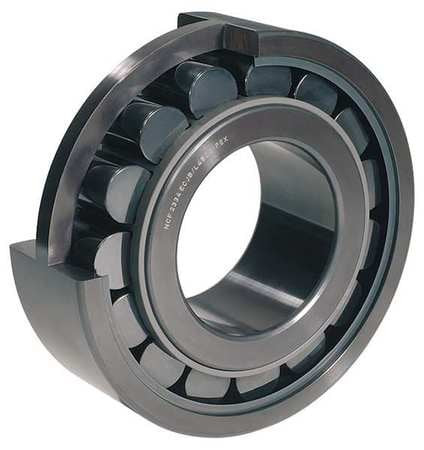

SKF NU 226 ECJ - CYLINDRICAL ROLLER BEARING BORE 130MM - CYLINDRICAL ROLLER BEARING OPEN BORE DIA 130MM +0/-.025MM TOLERANCE OUTSIDE DIA 230 +0/-.030MM OUTSIDE DIA TOLERANCE WIDTH 40 FILLET RADII (IN.) 0.1181 FILLET RADII (MM) 3 OUTER RING INSIDE DIA (IN.) 7.9528 OUTER RING INSIDE DIA (MM) 202 INNER RING OUTSIDE DIA (IN.) 6.4567 INNER RING OUTSIDE DIA (MM) 164 SHOULDER HEIGHT (IN.) 8.5039 SHOULDER HEIGHT (MM) 216 DYNAMIC LOAD CAPACITY (LB.) 93300 STATIC LOAD CAPACITY (LB.) 102300 TEMP RANGE (F) -40 DEGREES TO +300 DEGREES - EQUAL TO G8295174
MANUFACTURER:
SKF
MANUFACTURER PART NUMBER:
NU 226 ECJ
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
14.057
CONTRACTOR PART NUMBER:
2511500358
