Product Description

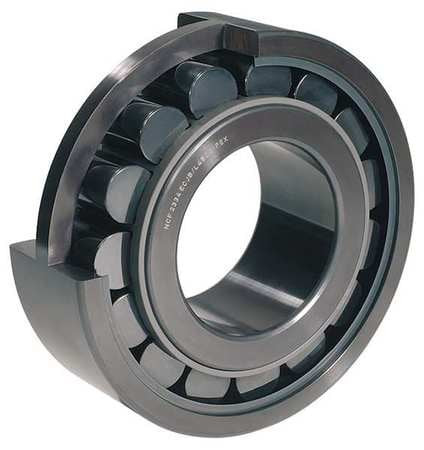

SKF NU 307 ECJ/C3 - CYLINDRICAL ROLLER BEARING BORE 35MM - CYLINDRICAL ROLLER BEARING OPEN BORE DIA 35MM +0/-.012MM TOLERANCE OUTSIDE DIA 80 +0/-.013MM OUTSIDE DIA TOLERANCE WIDTH 21 FILLET RADII (IN.) 0.0591 FILLET RADII (MM) 1.5 OUTER RING INSIDE DIA (IN.) 2.6102 OUTER RING INSIDE DIA (MM) 66.3 INNER RING OUTSIDE DIA (IN.) 2.0079 INNER RING OUTSIDE DIA (MM) 51 SHOULDER HEIGHT (IN.) 2.7953 SHOULDER HEIGHT (MM) 71 DYNAMIC LOAD CAPACITY (LB.) 16900 STATIC LOAD CAPACITY (LB.) 14200 TEMP RANGE (F) -40 DEGREES TO +300 DEGREES - EQUAL TO G8319665
MANUFACTURER:
SKF
MANUFACTURER PART NUMBER:
NU 307 ECJ/C3
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
1.101
CONTRACTOR PART NUMBER:
2511525793
