Product Description

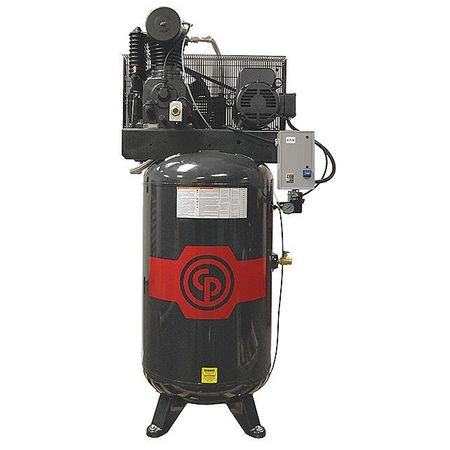

CHICAGO PNEUMATIC RCP-C581V - ELECTRIC AIR COMPRESSOR 2 STAGE 18 CFM - ELECTRIC AIR COMPRESSOR COMPRESSOR TYPE TANK MOUNTED NUMBER OF STAGES 2 LUBRICATION TYPE SPLASH LUBRICATED 5 HP MAX PRESSURE 175 PSI FREE AIR CFM @ MAX PRESSURE 18.0 VOLTAGE 208-230 1 PHASE 25 AMPS 60 HZ TANK SIZE 80 GAL. TANK TYPE VERTICAL FULLY PACKAGED ASME TANK YES (F)NPT OUTLET 3/4 IN. CYLINDER MATERIAL CAST IRON POWDER COATED FINISH ENCLOSURE NEMA 1 CONTROL PRESSURE SWITCH MOTOR TYPE OPEN DRIPPROOF OVERALL LENGTH 35-5/16 IN. OVERALL WIDTH 24 IN. - EQUAL TO 36VZ44
MANUFACTURER:
CHICAGO PNEUMATIC
MANUFACTURER PART NUMBER:
RCP-C581V
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
600
CONTRACTOR PART NUMBER:
2511556280
MAS CONTRACT NUMBER:
47QSEA20D0043
