Product Description

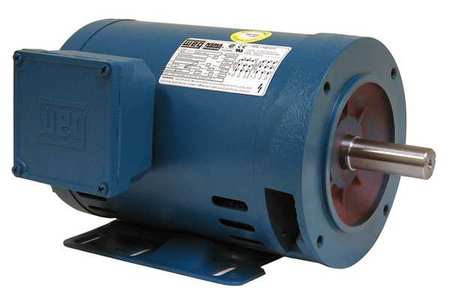

WEG 03018OT3H286TC - GP MOTOR,30 HP,1,770 RPM,575V AC,286TC - GENERAL PURPOSE MOTOR, THREE PHASE, MOTOR DESIGN 3-PHASE, 30 HP, NAMEPLATE RPM 1,770, NO. OF SPEEDS 1, VOLTAGE 575V AC, FULL LOAD AMPS 28.3 A, 286TC FRAME, USABLE @ 208V NO, USABLE @ 200V NO, HZ 60 HZ, MOTOR SERVICE FACTOR 1.15, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR THERMAL PROTECTION NONE, DUTY CYCLE CONTINUOUS, INS. CLASS F, NEMA DESIGN NONE, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE FACE/BASE, MOTOR SHAFT DESIGN KEYED - EQUAL TO G9962373
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
03018OT3H286TC
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
380
CONTRACTOR PART NUMBER:
2511635358
