Product Description

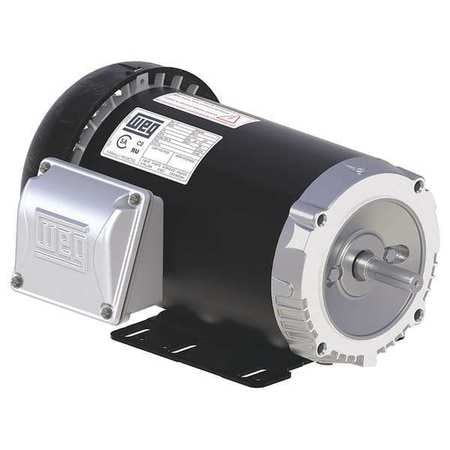

WEG .2536ES3E56C-S - GP MOTOR,1/4 HP,3,475 RPM,208-230/460V - GENERAL PURPOSE MOTOR, THREE PHASE, MOTOR DESIGN 3-PHASE, 1/4 HP, NAMEPLATE RPM 3,475, NO. OF SPEEDS 1, VOLTAGE 208-230/460V AC, FULL LOAD AMPS 1.00-0.91/0.46, 56C FRAME, USABLE @ 208V YES, USABLE @ 200V NO, HZ 60, MOTOR SERVICE FACTOR 1.15, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR THERMAL PROTECTION NOT APPLICABLE, DUTY CYCLE CONTINUOUS, INS. CLASS F, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE FACE/BASE, MOTOR MOUNTING POSITION ALL ANGLE - EQUAL TO G9123493
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
.2536ES3E56C-S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
20.94
CONTRACTOR PART NUMBER:
2511677431
