Product Description

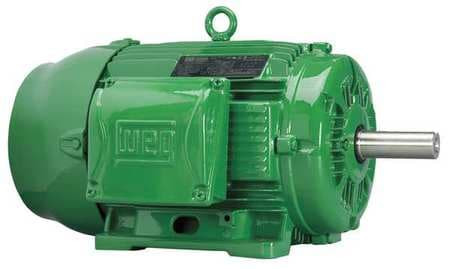

WEG 02018EG3E256T-W22 - GP MOTOR,20 HP,1,770 RPM,230/460V,256T - GENERAL PURPOSE MOTOR, THREE PHASE, MOTOR DESIGN 3-PHASE, 20 HP, NAMEPLATE RPM 1,770, NO. OF SPEEDS 1, VOLTAGE 230/460V AC, FULL LOAD AMPS 49.4/24.7 A, 256T FRAME, USABLE @ 208V YES, USABLE @ 200V NO, HZ 60 HZ, MOTOR SERVICE FACTOR 1.25, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR THERMAL PROTECTION NONE, DUTY CYCLE CONTINUOUS, INS. CLASS F, NEMA DESIGN NONE, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE RIGID BASE - EQUAL TO G9889056
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
02018EG3E256T-W22
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
346
CONTRACTOR PART NUMBER:
2511743923
