Product Description

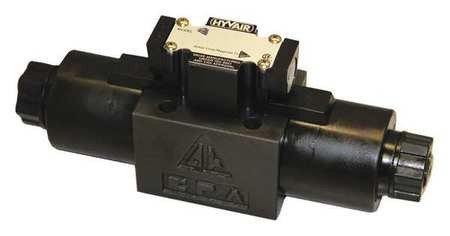

CHIEF D05S-2C-115A-35 - DIRECTIONAL VALVE DO5 115VAC TANDEM - HYDRAULIC DIRECTIONAL VALVE SOLENOID OPERATED DO5 SIZE NUMBER OF WAYS 4 NUMBER OF POSITIONS 3 TANDEM SPOOL TYPE COIL VOLTS 115VAC 50/60 HZ 5.5/4.6 INRUSH AMPS 1.1/.86 HOLDING AMPS GPM @ 3000 PSI 17 MAX PRESSURE (PSI) 5000 MAX TANK PRESSURE (PSI) 3000 BUNA N SEAL TYPE OVERRIDE NO LENGTH (IN.) 9.43 WIDTH (IN.) 2.76 HEIGHT (IN.) 4.29 DO5 FOR USE WITH GEAR PUMP - EQUAL TO 35LP32
MANUFACTURER:
CHIEF
MANUFACTURER PART NUMBER:
D05S-2C-115A-35
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
CHINA
ORDER INCREMENT:
1
WEIGHT:
10.3
CONTRACTOR PART NUMBER:
2511848376
