Product Description

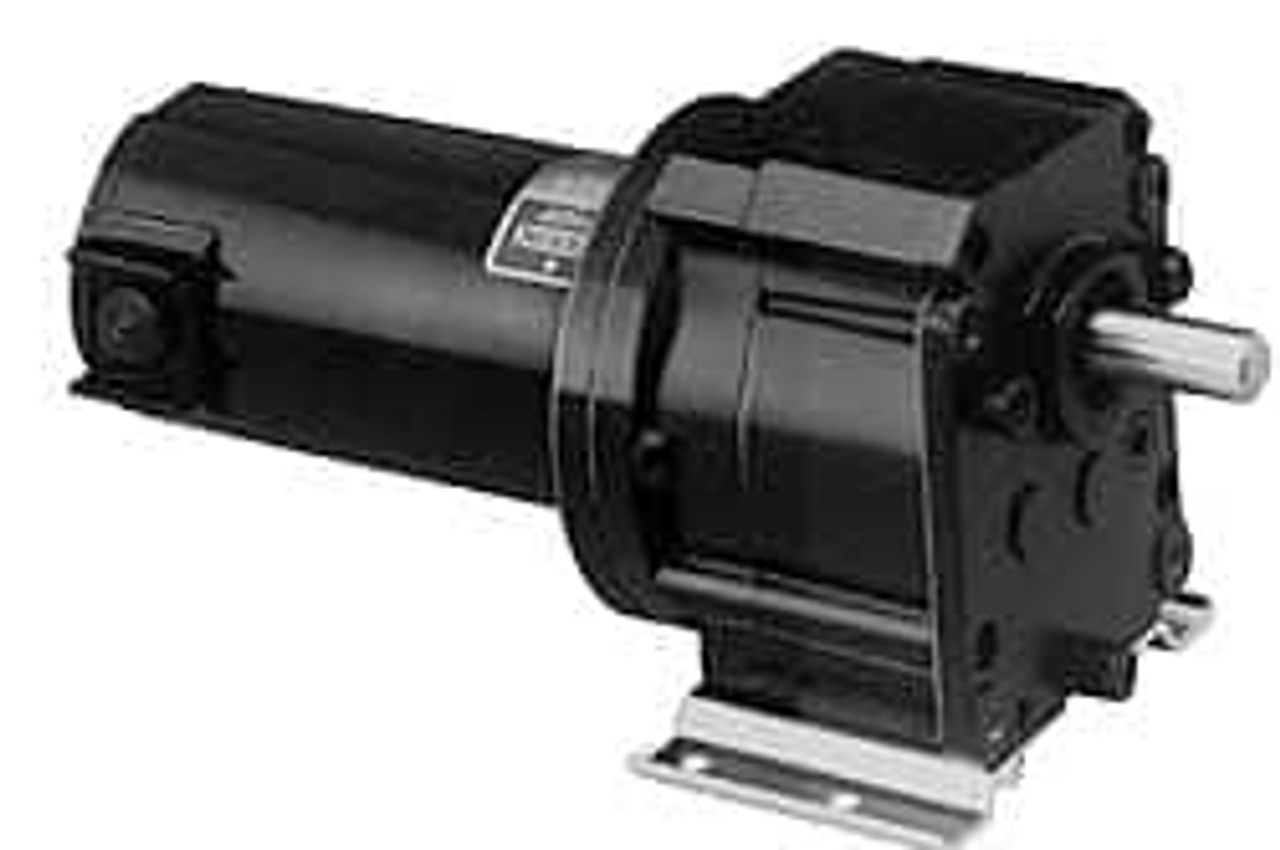

LEESON M1125073.00 - LEESON M1125073.00, 1/8 HP, 94 RPM, 90VDC, TENV, P300, 19:1 RATIO, 77 IN-LBS - DC GEARMOTOR WITH PARALLEL SHAFT. 1/8HP, 94 RPM, GEAR RATIO 19 TO 1, OVERHUNG LOAD 236 POUNDS, 77 LB. IN. FULL LOAD TORQUE, TOTALLY-ENCLOSED NON-VENTILATED (TENV) ENCLOSURE, 30 FRAME, 90V, NAME PLATE AMPS 1.3.
UNIT IS TOTALLY ENCLOSED, PERMANENT MAGNET DC GEARMOTOR, PERFORMANCE MATCHED FOR CONTINUOUS DUTY. FEATURES PRECISION MACHINED IN-LINE STEEL GEARS, WITH A FIRST STAGE STEEL HELICAL GEAR FOLLOWED BY SPUR-TYPE GEARS. LUBRICATION IS PERMANENT SEMI-FLUID GREASE, REDUCING POSSIBILITY OF LEAKAGE. OUTPUT SHAFTS HAVE NEEDLE BEARINGS FOR HIGH LOAD CAPACITIES. SHAFTS ARE HARDENED STEEL. CONDUIT B - EQUAL TO B234782
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
M1125073.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
12
CONTRACTOR PART NUMBER:
2511887311
MAS CONTRACT NUMBER:
47QSEA20D0043
