Product Description

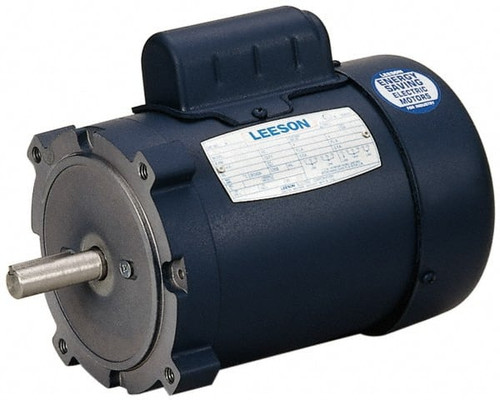

LEESON 110420.00 - LEESON MOTORS-1.5HP, 115/208-230V, 1725RPM, TEFC, C FACE MOUNT, 1.0 SF, 79 EFF - GENERAL PURPOSE, CAPACITOR START-CAPACITOR RUN MOTOR: 1.5HP, 1725 RPM, TOTALLY-ENCLOSED FAN-COOLED (TEFC) ENCLOSURE, 56 FRAME, C FACE MOUNT, 115/208-230V, 1PH, 60HZ, NAME PLATE AMPS 17.2/8.8-8.6, CONTINUOUS DUTY, 1.0 SERVICE FACTOR, NO THERMAL PROTECTION, EFFICIENCY: 79, EFFICIENCY TYPE: STANDARD, AMBIENT 40 C, SELECTIVE CCW ROTATION, SHAFT LENGTH 1-7/8, SHAFT DIAMETER 5/8.
TOTALLY ENCLOSED FAN COOLED (TEFC) ENCLOSURE HAS NO VENT OPENINGS, AND IS TIGHTLY ENCLOSED TO PREVENT THE FREE EXCHANGE OF AIR, BUT IS NOT AIRTIGHT. AN EXTERNAL FAN IS AN INTEGRAL PART OF THE MOTOR AND PROVIDES COOLING B - EQUAL TO B222506
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
110420.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
39
CONTRACTOR PART NUMBER:
2511941487
MAS CONTRACT NUMBER:
47QSEA20D0043
