Product Description

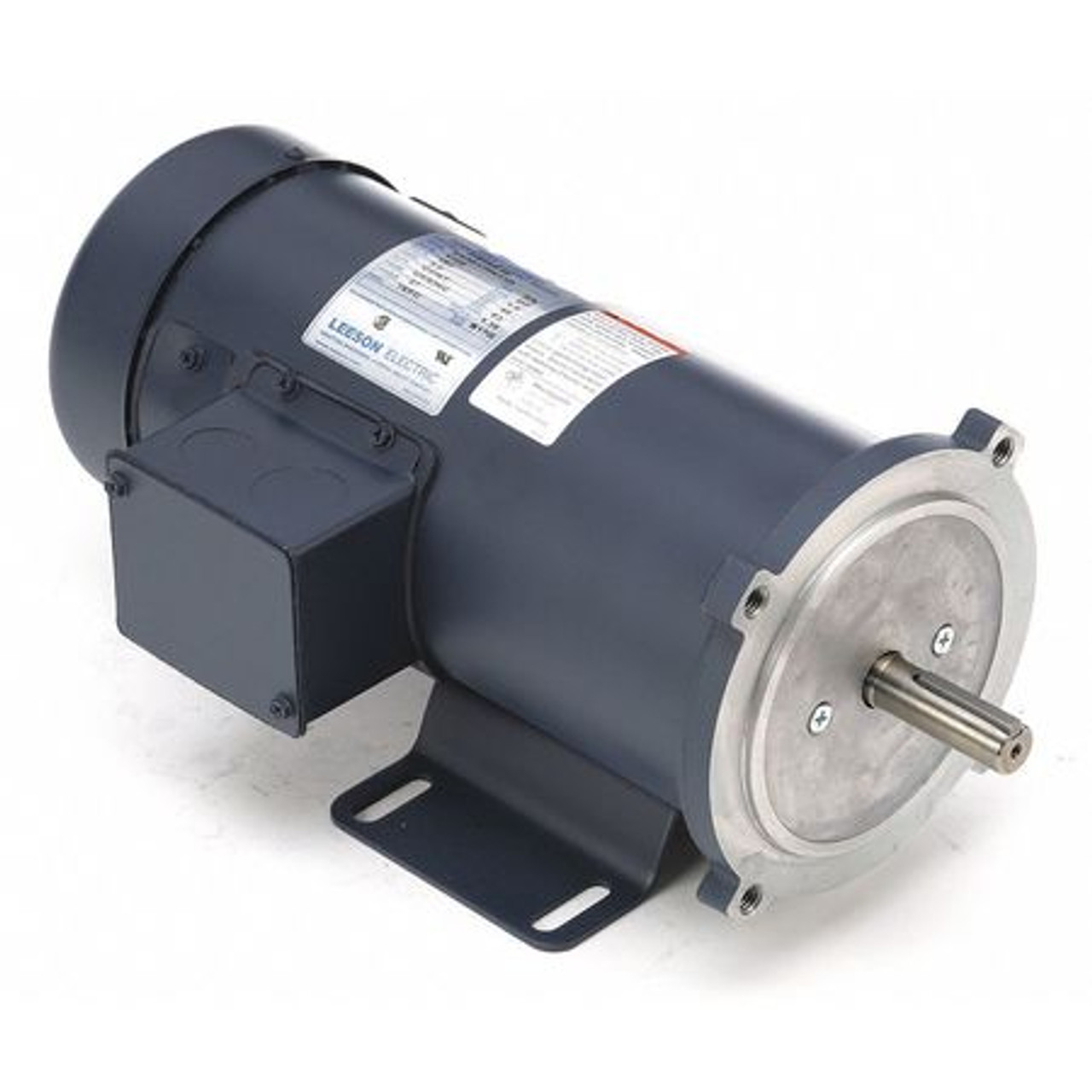

LEESON 098069.00 - DC PERMANENT MAGNET MOTOR 3.8A 3/4 HP - DC PERMANENT MAGNET MOTOR DC PERMANENT MAGNET 3/4 HP MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED FAN-COOLED 1750 NAMEPLATE RPM VOLTAGE 180VDC FULL LOAD AMPS 3.8 FULL LOAD TORQUE 27.0 IN.-LB. FRAME 56C MOTOR MOUNTING TYPE FACE/BASE MOTOR THERMAL PROTECTION NONE F INS. CLASS BEARINGS BALL MAX AMBIENT TEMP 40 DEGREES C CW/CCW ROTATION OVERALL LENGTH 13-13/16 IN. 11-7/8 IN LENGTH LESS SHAFT BODY DIA 4-7/8 IN. SHAFT DIA 5/8 IN. SHAFT LENGTH 1-7/8 IN. BRUSH TYPE CARBON - EQUAL TO 48ZG65
MANUFACTURER:
LEESON
MANUFACTURER PART NUMBER:
098069.00
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
33.7
CONTRACTOR PART NUMBER:
2512062781
MAS CONTRACT NUMBER:
47QSEA20D0043
