Product Description

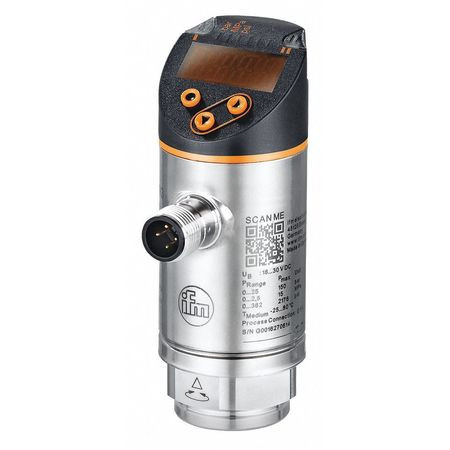

IFM PN2294 - ELECTRONIC PRESSURE SENSOR 2175 PSI - ELECTRONIC PRESSURE SENSOR RANGE -14.6 TO 145 PSI ANALOG OUTPUT 4 TO 20MA OR 0 TO 10VDC CONTROL OUTPUT PNP PROGRAMMABLE ON/OFF SETTING POWER REQUIRED 18 TO 30VDC PROCESS CONNECTION 1/4 IN NPT ELECTRICAL CONNECTION 4 PIN M12 DISPLAY 4 DIGIT LED WETTED MATERIALS STAINLESS STEEL HOUSING MATERIAL STAINLESS STEEL OPERATING TEMP RANGE -13 DEGREES TO 176 DEGREES F IP RATING 65/67 MAX PRESSURE 2175 PSI STANDARDS CULUS CE - EQUAL TO 52PG32
MANUFACTURER:
IFM
MANUFACTURER PART NUMBER:
PN2294
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
GERMANY
ORDER INCREMENT:
1
WEIGHT:
0.49
CONTRACTOR PART NUMBER:
2512199442
MAS CONTRACT NUMBER:
47QSEA20D0043
