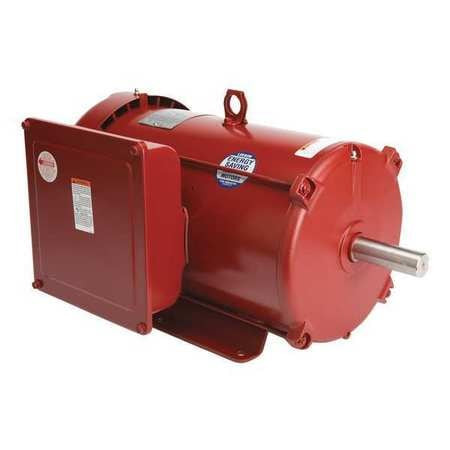

LEESON 140707.00 GENERAL PURPOSE FARM DUTY MOTOR 7-1/2 HP

LEESON 140707.00 - GENERAL PURPOSE FARM DUTY MOTOR 7-1/2 HP - HIGH TORQUE FARM DUTY MOTOR CAPACITOR-START/RUN 7-1/2 HP NAMEPLATE RPM 1740 VOLTAGE 230 1 PHASE FRAME 215 TOTALLY ENCLOSED FAN-COOLED FULL LOAD AMPS 32.0 60 HZ RIGID BASE MOTOR MOUNTING TYPE MOTOR THERMAL PROTECTION MANUAL INS. CLASS F MOTOR SERVICE FACTOR 1.15 BALL MOTOR BEARINGS MAX AMBIENT TEMPERATURE 40 DEGREES C CWSE MOTOR SHAFT ROTATION OVERALL LENGTH 20-1/4 IN. SHAFT DIA 1-3/8 IN. SHAFT LENGTH 3-3/8 IN. MOTOR FRAME MATERIAL ROLLED STEEL - EQUAL TO G4608390
