Product Description

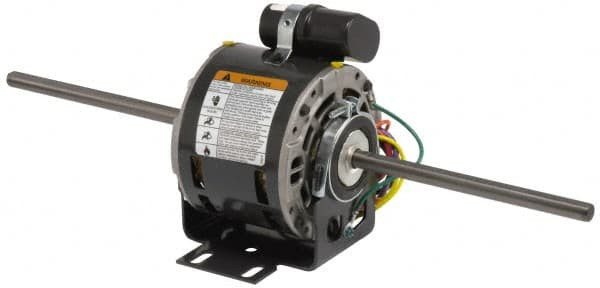

US MOTORS 1243 - MOTOR, 1/4HP, 1625/2SPD, 230V, 60HZ, 48Y - CONDENSER FAN MOTOR, SINGLE PHASE, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, 1/4 HP HP, NAMEPLATE RPM 1,625 RPM, NO. OF SPEEDS 2, VOLTAGE 230V AC, 1.8 A FULL LOAD AMPS, 48YZ FRAME, 60 HZ HZ, MOTOR SERVICE FACTOR 1, MOTOR THERMAL PROTECTION AUTO, INS. CLASS A, MAX. AMBIENT TEMP. 40 DEGREES C, MOTOR SHAFT ROTATION CW/CCW, MOTOR ENCLOSURE DESIGN OPEN DRIP PROOF, MOTOR MOUNTING TYPE CRADLE BASE, MOTOR FRAME MATERIAL STEEL, MOTOR MOUNTING POSITION ALL ANGLE, LEAD LENGTH 20 IN, SHAFT DIA. 1/2 IN - EQUAL TO G0916725
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
1243
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
13.85
CONTRACTOR PART NUMBER:
2512520272
