Product Description

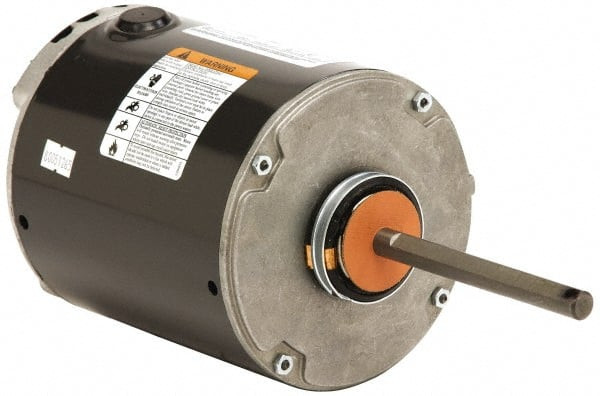

US MOTORS 6603 - CONDENSER FAN MOTOR, 3/4 HP - MOTOR,3/4HP,1075RPM,208-230/460V,60HZ, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, PHASE SINGLE, 3/4 HP, NO. OF SPEEDS 1, VOLTAGE 208-230/460V AC, MOTOR SHAFT ROTATION CCW, 48 FRAME, MOTOR ENCLOSURE DESIGN TOTALLY ENCLOSED AIR-OVER, MOTOR MOUNTING POSITION ALL ANGLE, SHAFT DIA. 1/2 IN, SHAFT LENGTH 5 IN, MOTOR THERMAL PROTECTION AUTO, MAX. AMBIENT TEMP. 60 DEGREES C, NAMEPLATE RPM 1,075, HVAC/R, 60 HZ, FULL LOAD AMPS 5.0/2.5 A, INS. CLASS B, MOTOR SERVICE FACTOR 1, MOTOR BEARINGS BALL - EQUAL TO G0920331
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
6603
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
23
CONTRACTOR PART NUMBER:
2512673892
