Product Description

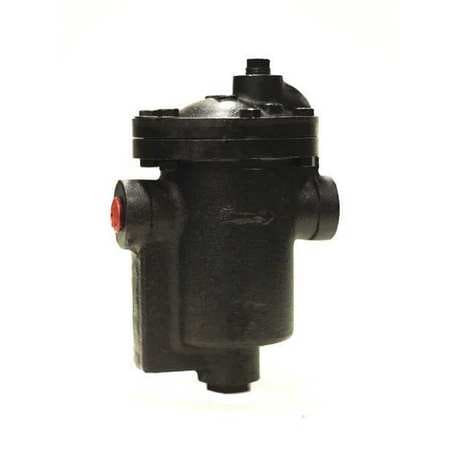

DUNHAM-BUSH IB12-2-200G - STEAM TRAP 1/2 NPT CONNECTIONS SS DISC - STEAM TRAP (F)NPT CONNECTIONS 1/2 IN. MAX OPERATING PSI 200 PSI END TO END LENGTH 6-1/2 IN. CONDENSATE CAPACITY LBS/HR 1605 MAX TEMP 450 DEGREES F TYPE INVERTED BUCKET DOWNSTREAM PSI RANGE 0 TO 120 PSI BODY MATERIAL CAST IRON NPT INLET 1/2 IN. NPT OUTLET 1/2 IN. NPT PORT 1/2 IN. DISC MATERIAL STAINLESS STEEL PIPE CONFIGURATION STRAIGHT TRAP POSITION HORIZONTAL PRESSURE AIR VENT RELEASES AIR AND NON-CONDENSABLE GASES THAT ADVERSELY AFFECT THE HEAT TRANSFER OF A STEAM SYSTEM - EQUAL TO G0580069
MANUFACTURER:
DUNHAM-BUSH
MANUFACTURER PART NUMBER:
IB12-2-200G
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
17.25
CONTRACTOR PART NUMBER:
2512905313
MAS CONTRACT NUMBER:
47QSEA20D0043
