Product Description

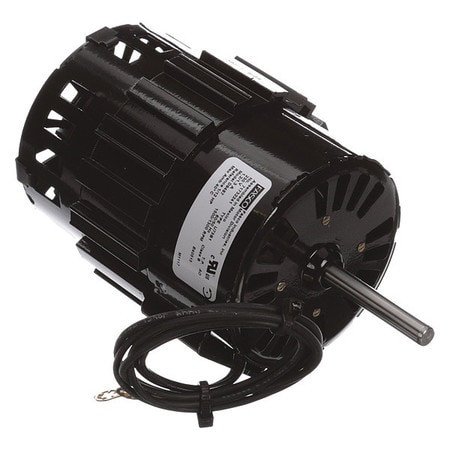

FASCO D9487 - CONDENSER FAN MOTOR 1/12 HP 230V 1 SPEED - OEM REPLACEMENT BRAND TECUMSEH 1/12 HP RPM RANGE 1401-1500 VOLTAGE 230 MOTOR SHAFT ROTATION CCWSE FRAME NON-STANDARD RIGID BASE MOTOR MOUNTING TYPE SHAFT DIA 5/16 IN. SHAFT LENGTH 2-1/8 IN. NUMBER OF SHAFTS 1 MOTOR THERMAL PROTECTION AUTO NAMEPLATE RPM 1500/1300 FULL LOAD AMPS 1.2/1.3 60/50 HZ INS. CLASS B MAX AMBIENT TEMP 40 DEGREES C MOTOR SERVICE FACTOR 1.00 SLEEVE MOTOR BEARINGS OVERALL LENGTH 6-15/16 IN. CAPACITOR REQUIRED NO - EQUAL TO G4333835
MANUFACTURER:
FASCO
MANUFACTURER PART NUMBER:
D9487
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
4.9
CONTRACTOR PART NUMBER:
2512925006
MAS CONTRACT NUMBER:
47QSEA20D0043
