Product Description

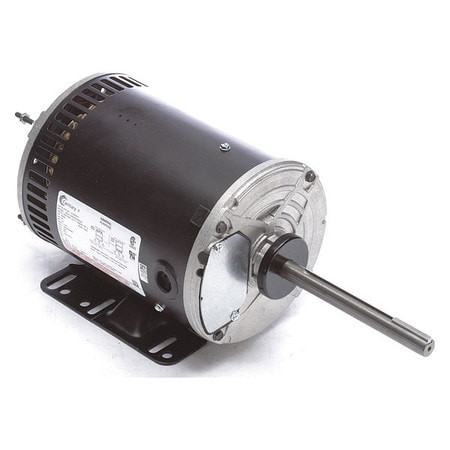

CENTURY H1050AV1 - CONDENSER FAN MOTOR 1140 RPM 1 HP - CONDENSER FAN MOTOR MOTOR DESIGN 3-PHASE PHASE 3 1 HP NO OF SPEEDS 1 VOLTAGE 208-230/460 MOTOR SHAFT ROTATION CW/CCW 56HZ FRAME MOTOR ENCLOSURE DESIGN OPEN RIGID BASE MOTOR MOUNTING TYPE MOTOR MOUNTING POSITION HORIZONTAL SHAFT DIA 5/8 IN. SHAFT LENGTH 6 IN. MOTOR THERMAL PROTECTION AUTO MAX AMBIENT TEMP 70 DEGREES C NAMEPLATE RPM 1140 HVAC/R CONDENSER FAN 60 FULL LOAD AMPS 3.8-4.0/2.0 INS. CLASS F MOTOR SERVICE FACTOR 1.00 MOTOR BEARINGS BALL OVERALL LENGTH 16-3/8 IN. - EQUAL TO G3701560
MANUFACTURER:
CENTURY
MANUFACTURER PART NUMBER:
H1050AV1
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
27.5
CONTRACTOR PART NUMBER:
2512925749
