Product Description

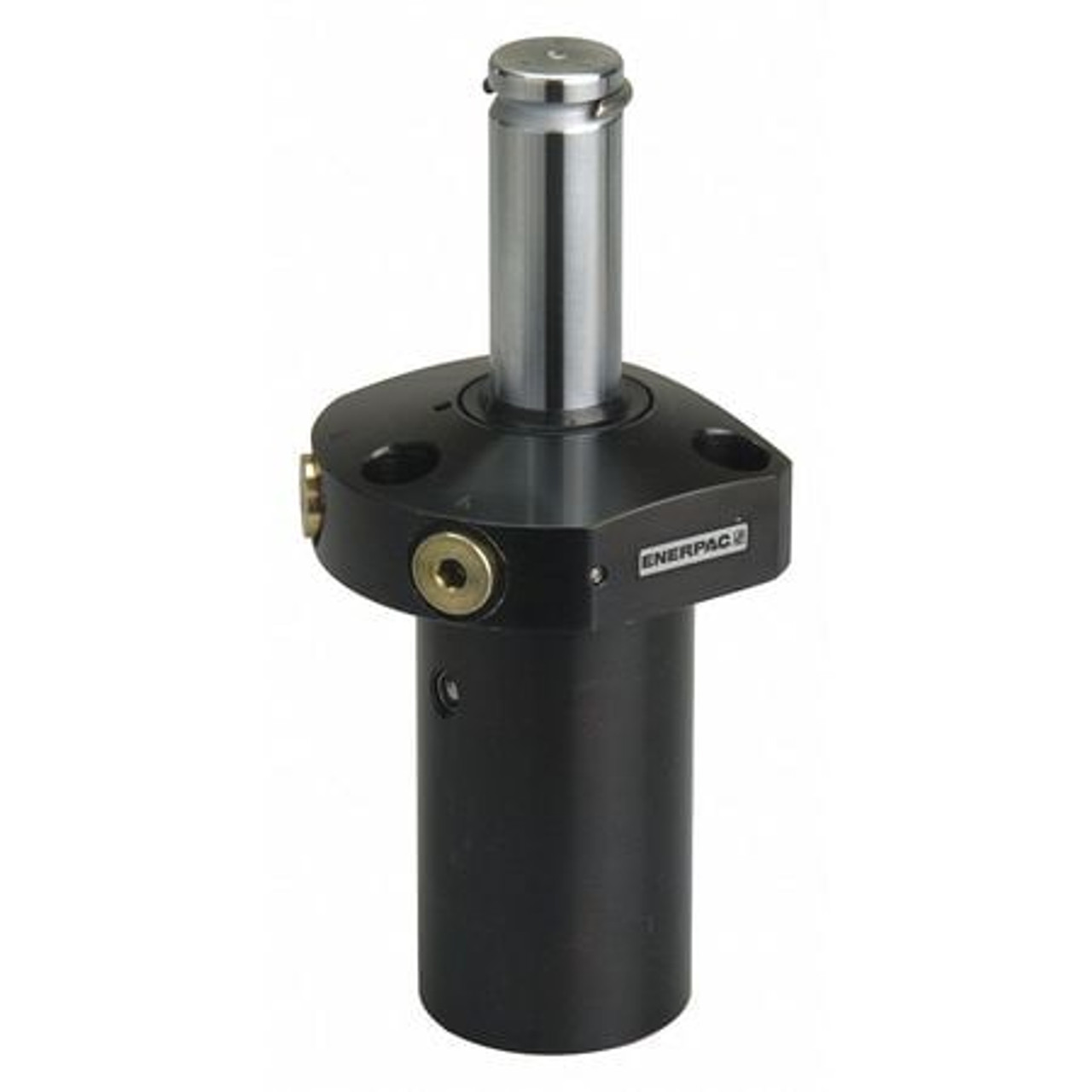

ENERPAC SULD352 - SWING CYLINDER UPPER FLANGE 7600 LB. - SWING CLAMP HYDRAULIC CYLINDER SWING BODY MATERIAL STEEL MOUNTING STYLE UPPER FLANGE SINGLE ACTING/DOUBLE ACTING DOUBLE ACTING TURNS LEFT CLAMPING FORCE 7600 LB. TOTAL STROKE 1.28 IN. EFFECTIVE AREA CLAMPED 1.92 SQ. IN. CLAMPING STROKE 0.63 IN. MAX PRESSURE 5000 PSI SERIES SU SWING ANGLE 90 DEGREES PORT SIZE #4 SAE EFFECTIVE AREA UNCLAMPED 3.68 SQ. IN. OIL CAPACITY CLAMPED 2.27 CU IN. OIL CAPACITY UNCLAMPED 4.35 CU IN. MAX OIL FLOW 240 CU IN./MIN. - EQUAL TO 41GJ12
MANUFACTURER:
ENERPAC
MANUFACTURER PART NUMBER:
SULD352
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
UNITED STATES OF AMERICA
ORDER INCREMENT:
1
WEIGHT:
11.24
CONTRACTOR PART NUMBER:
2512948993
MAS CONTRACT NUMBER:
47QSEA20D0043
