Product Description

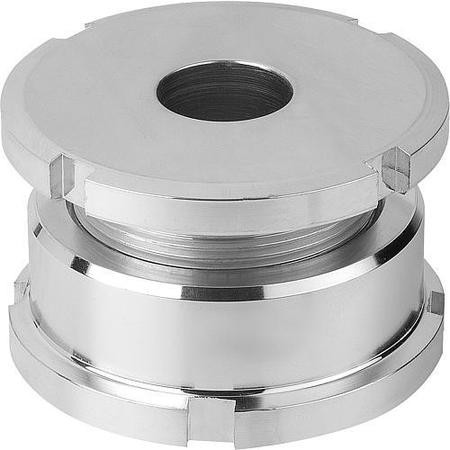

KIPP K0694.1030 - ADJUSTMENT BOLT M50X1.5 STEEL - ADJUSTMENT BOLT BOLT MATERIAL STEEL BOLT FINISH ZINC PLATED CENTER HOLE DIA 33.00MM USE WITH SCREW SIZE M30 BOLT THREAD SIZE M50X1.5 BOLT OUTSIDE DIA 70.00MM MIN BOLT HEIGHT 33.00MM MAX BOLT HEIGHT 43.00MM SHOULDER HEIGHT 11.00MM SPANNER NOTCH WIDTH 11.00MM SPANNER NOTCH DEPTH 2.50MM MAX DOWN FORCE 330 KN - EQUAL TO G7267596
MANUFACTURER:
KIPP
MANUFACTURER PART NUMBER:
K0694.1030
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
GERMANY
ORDER INCREMENT:
1
WEIGHT:
1.438
CONTRACTOR PART NUMBER:
2513026142
MAS CONTRACT NUMBER:
47QSEA20D0043
