Product Description

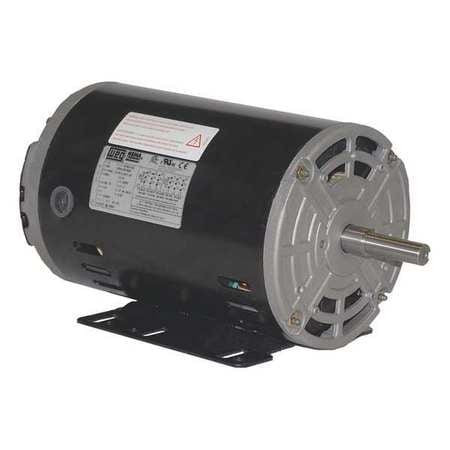

WEG 00158OT3E56-S - GENERAL PURPOSE MOTOR 1-1/2 HP 56H FRAME - GENERAL PURPOSE MOTOR 3-PHASE OPEN DRIPPROOF 1 1/2 HP NAMEPLATE RPM 1760 56H FRAME VOLTAGE 208-230/460 60/50 HZ 3 PHASE 4.6-4.2/2.1 FULL LOAD AMPS NO OF SPEEDS 1 MOTOR MOUNTING TYPE RIGID BASE MOTOR MOUNTING POSITION ALL ANGLE MOTOR THERMAL PROTECTION NONE INS. CLASS F 1.15 MOTOR SERVICE FACTOR BALL MOTOR BEARINGS MOTOR FRAME MATERIAL ROLLED STEEL MAX AMBIENT TEMP 40 DEGREES C CW/CCW MOTOR SHAFT ROTATION OVERALL LENGTH 12 11/16 IN MOTOR SHAFT DESIGN KEYED - EQUAL TO G7744935
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
00158OT3E56-S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
42.3
CONTRACTOR PART NUMBER:
2513210869
