Product Description

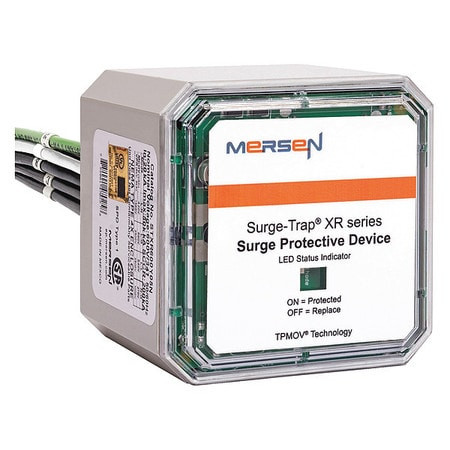

SURGE TRAP STXR600Y05N - SURGE PROTECTION DEVICE 347/600VAC WYE - SURGE PROTECTION DEVICE VOLTAGE 347/600V AC WYE PHASE 3 VOLTAGE PROTECTION RATING 1000V (N-G) 1500V (L-N) 2500V (L-G L-L) MAX CONTINUING OPERATING VOLTAGE 420/840V AC NOMINAL DISCHARGE CURRENT 20 A MODES OF PROTECTION L-G L-L L-N N-G MOUNTING LOCATION EXTERNALLY MOUNTED FILTERING NO MODULAR NO COLOR GRAY MOUNTING STYLE CHASE NIPPLE/PANEL ENCLOSURE NEMA RATING 4X BASIC MATERIAL NONMETALLIC SYSTEM CONNECTION PARALLEL MAX SURGE CURRENT PER PHASE 50 KA - EQUAL TO G5527497
MANUFACTURER:
SURGE TRAP
MANUFACTURER PART NUMBER:
STXR600Y05N
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
1.79
CONTRACTOR PART NUMBER:
2513245752
MAS CONTRACT NUMBER:
47QSEA20D0043
