Product Description

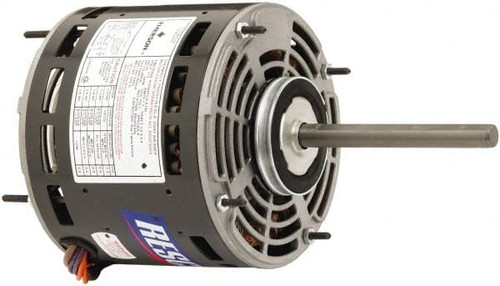

US MOTORS 6127 - CONDENSER FAN MOTOR, 1/3 HP - MOTOR,1/3HP,1625RPM,208-230V,50,60HZ, MOTOR DESIGN PERMANENT SPLIT CAPACITOR, PHASE SINGLE, 1/3 HP, NO. OF SPEEDS 1, VOLTAGE 208-230V AC, MOTOR SHAFT ROTATION CW, 48 FRAME, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, STUD MOTOR MOUNTING TYPE, MOTOR MOUNTING POSITION HORIZONTAL, SHAFT LENGTH 1 3/4 IN, MOTOR THERMAL PROTECTION AUTO, MAX. AMBIENT TEMP. 50 DEGREES C, NAMEPLATE RPM 1,625, HVAC/R, 60/50 HZ, FULL LOAD AMPS 2.2 A, INS. CLASS A, MOTOR BEARINGS BALL, OVERALL LENGTH 8 11/16 IN - EQUAL TO 617J13
MANUFACTURER:
US MOTORS
MANUFACTURER PART NUMBER:
6127
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
15
CONTRACTOR PART NUMBER:
2513311626
