Product Description

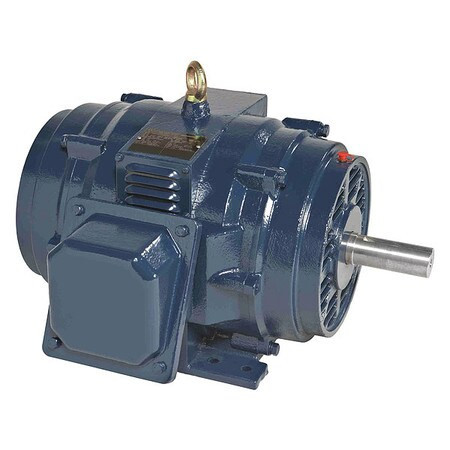

MARATHON 254TTDBD6076 - GP MOTOR,7 1/2 HP,1,182 RPM,230/460V - GENERAL PURPOSE MOTOR, THREE-PHASE, OPEN DRIP PROOF MOTOR ENCLOSURE DESIGN, 7 1/2 HP, NAMEPLATE RPM 1182 RPM, FRAME 254T, VOLTAGE 230/460V AC, 60 HZ HZ, THREE PHASE, FULL LOAD AMPS 20.2/10.1 A, RIGID BASE MOTOR MOUNTING TYPE, MOTOR THERMAL PROTECTION NONE, INS. CLASS F, MOTOR SERVICE FACTOR 1.15, BALL MOTOR BEARINGS, MOTOR FRAME MATERIAL STEEL, MAX. AMBIENT TEMP. 40 DEGREES C, CW/CCW MOTOR SHAFT ROTATION, NOMINAL EFFICIENCY 90.5 PERCENT, CONTINUOUS DUTY, 1,101-1,200, CE, CSA, UL RECOGNIZED - EQUAL TO 454X51
MANUFACTURER:
MARATHON
MANUFACTURER PART NUMBER:
254TTDBD6076
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
MEXICO
ORDER INCREMENT:
1
WEIGHT:
205.03
CONTRACTOR PART NUMBER:
2513316461
