Product Description

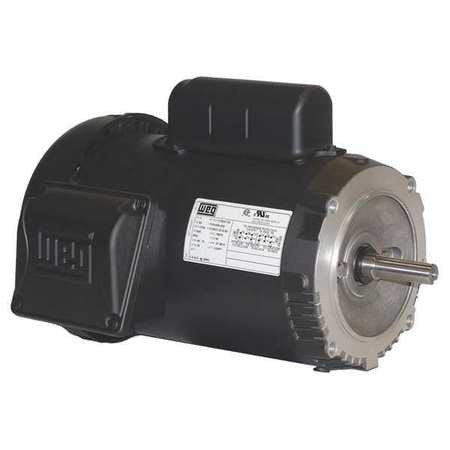

WEG .5036ES1BW56CFL-S - WEG ELECTRIC S STANDARD EFFICIENCY AC INDUCTION MOTOR, GENERAL PURPOSE, 1/2HP, 1-PHASE, 115/208-230 VAC, 3600RPM, TEFC, NEMA 56C FRAME, ROLLED STEEL, C-FACE MOUNT. - ITEM: MOTOR SERIES: S EFFICIENCY GROUP: STANDARD EFFICIENCY EFFICIENCY: 60 VOLTAGE TYPE: AC MOTOR TYPE: INDUCTION MOTOR APPLICATION: GENERAL PURPOSE HORSEPOWER RATING: 1/2HP NUMBER OF PHASES: 1 VOLTAGE RATING: 115/208-230 VAC SYNCHRONOUS SPEED: 3600RPM NAMEPLATE RPM: 3500RPM OVERLOAD TYPE: NONE ENCLOSURE TYPE: TEFC SHAFT TYPE: ROUND WITH SQUARE KEY SHAFT DIAMETER: 5/8IN SHAFT MATERIAL: 1045 CARBON STEEL MOTOR FRAME: NEMA 56C FRAME MATERIAL: ROLLED STEEL ELECTRICALLY REVERSIBLE: YES INSULATION CLASS: CLASS F IP RATING: IP55 SERVICE FACTOR: 1.15 INTEGRATED BRAKE: NO NEMA - EQUAL TO .5036ES1BW56CFL-S
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
.5036ES1BW56CFL-S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
BRAZIL
ORDER INCREMENT:
1
WEIGHT:
22.13
CONTRACTOR PART NUMBER:
2513390932
