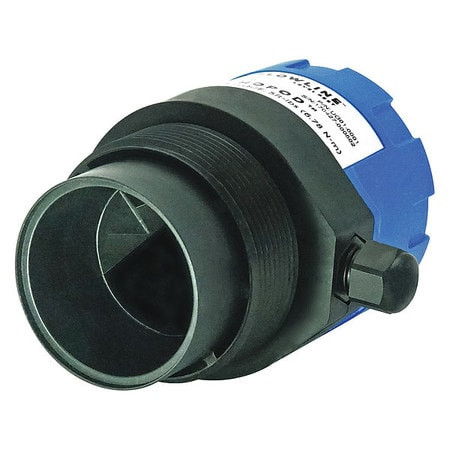

FLOWLINE UG03-0011-40 REFLECTIVE ULTRASONIC LEVEL SENSOR PVDF

FLOWLINE UG03-0011-40 - REFLECTIVE ULTRASONIC LEVEL SENSOR PVDF - REFLECTIVE ULTRASONIC LEVEL SENSOR GENERAL PURPOSE RANGE 4 IN TO 9.8 FT. ACCURACY +/-2 PERCENT OF RANGE RESOLUTION 0.039 IN. DEAD BAND 4 IN. BEAM WIDTH 2 IN. CONFIGURATION WEBCAL INPUT VOLTAGE 14-28VDC OUTPUT 4 TO 20MA 2-WIRE TEMP RANGE -40 DEGREES TO 176 DEGREES F MAX PRESSURE 30 PSI ENCLOSURE RATING TYPE 6P (IP68) ENCLOSURE MATERIAL POLYPROPYLENE MATERIAL PVDF GASKET MATERIAL VITON(R) A MOUNTING 2 IN NPT DISPLAY NONE STANDARDS CSA WIDTH 2.9 IN. HEIGHT 4.0 IN. - EQUAL TO 54YT74
