Product Description

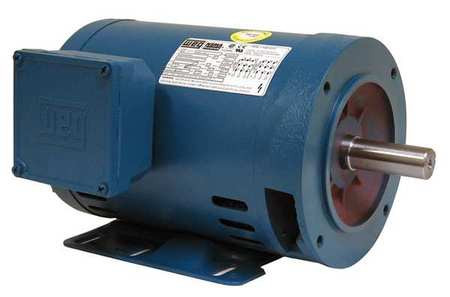

WEG 03018OT3E286TC-W40 - GP MOTOR,30 HP,1,770 RPM,230/460V,286TC - GENERAL PURPOSE MOTOR, THREE PHASE, MOTOR DESIGN 3-PHASE, 30 HP, NAMEPLATE RPM 1,770, NO. OF SPEEDS 1, VOLTAGE 230/460V AC, FULL LOAD AMPS 69.8/34.9 A, 286TC FRAME, USABLE @ 208V YES, USABLE @ 200V NO, HZ 60 HZ, MOTOR SERVICE FACTOR 1.25, MAX. AMBIENT TEMP. 104 DEGREES F, MOTOR THERMAL PROTECTION NONE, DUTY CYCLE CONTINUOUS, INS. CLASS F, NEMA DESIGN NONE, MOTOR ENCLOSURE DESIGN OPEN DRIPPROOF, MOTOR SHAFT ROTATION CW/CCW, MOTOR MOUNTING TYPE FACE/BASE, MOTOR SHAFT DESIGN KEYED - EQUAL TO G9962382
MANUFACTURER:
WEG
MANUFACTURER PART NUMBER:
03018OT3E286TC-W40
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
ORDER INCREMENT:
1
WEIGHT:
430
CONTRACTOR PART NUMBER:
2514222646
