Product Description

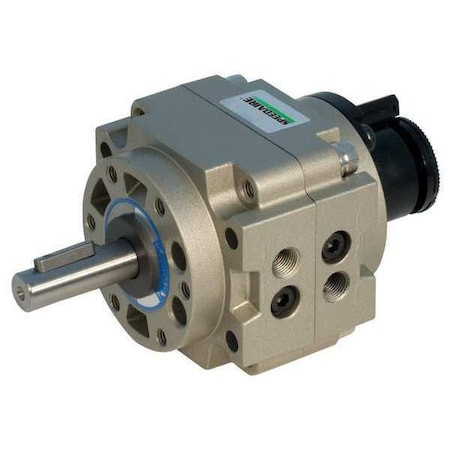

SPEEDAIRE CRB1BW50-270S - ROTARY ACTUATOR,270 DEG,50MM BORE - ROTARY ACTUATOR, VANE STYLE, ROTATION ANGLE (DEG.) 270, TORQUE (IN.-LBS.) 88.51 IN-LB / 102 PSI, BORE 50MM, CUSHION TYPE NONE, PORT SIZE 1/8" RC, MAXIMUM PRESSURE 145 PSI, OPERATING TEMP. RANGE 40 TO 140 F, SHAFT TYPE CARBON STEEL, SHAFT LENGTH 39.5MM, SHAFT DIA. 12MM, KEYWAY LENGTH 5MM, KEY HEIGHT WITH SHAFT 13.5MM, HOUSING MATERIAL ANODIZED ALUMINUM, POWERTRAIN MATERIAL CARBON STEEL, LENGTH 78MM, WIDTH 70MM, HEIGHT 67MM - EQUAL TO 5PEY6
MANUFACTURER:
SPEEDAIRE
MANUFACTURER PART NUMBER:
CRB1BW50-270S
UNIT OF MEASURE:
EA
QTY PER UNIT OF MEASURE:
1
COUNTRY OF ORIGIN:
JAPAN
ORDER INCREMENT:
1
WEIGHT:
1.84
CONTRACTOR PART NUMBER:
2515754383
MAS CONTRACT NUMBER:
47QSEA20D0043
